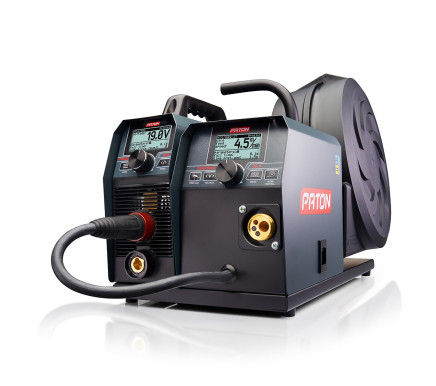

PATON™ ProMIG-250-15-4

Code: 4009264
Code: 4009264
In Stock
  • 20900 грн
  • 18399 грн
Pay in installments
3483 hrn
x 6 month
Rated power supply voltage, V 220/230
Rated welding current (A) 250
Operating load factor 70%
Power supply voltage range (V) 160-260
Welding current control range (A) 12 - 250
Diameter of a stick electrode, mm 1,6-5
Diameter of solid welding wire, mm 0,6 - 1,2
Rated power consumption, kVA 6,9-7,9
Maximum consumption,power kVA 11
Protection rate IP33
Overall dimensions, WxLxH, mm 275х450х290
Weight, kg 12,7
Warranty period, month 60

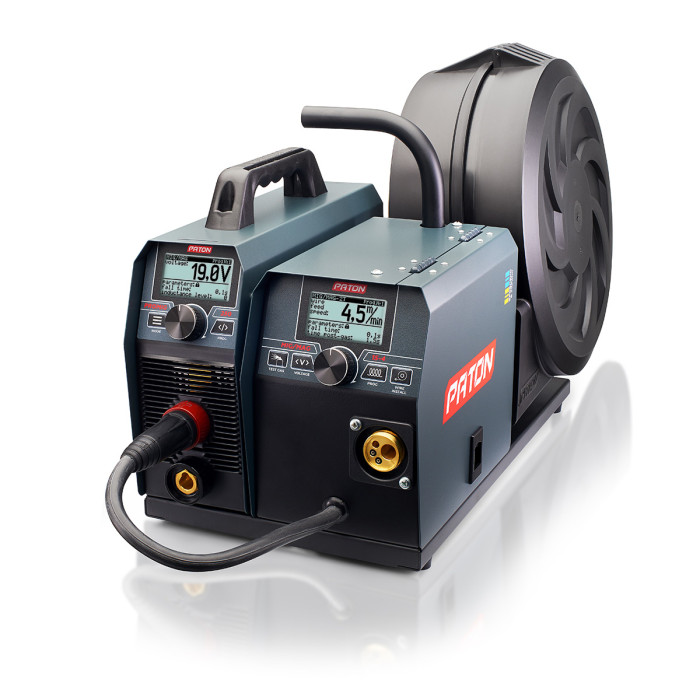

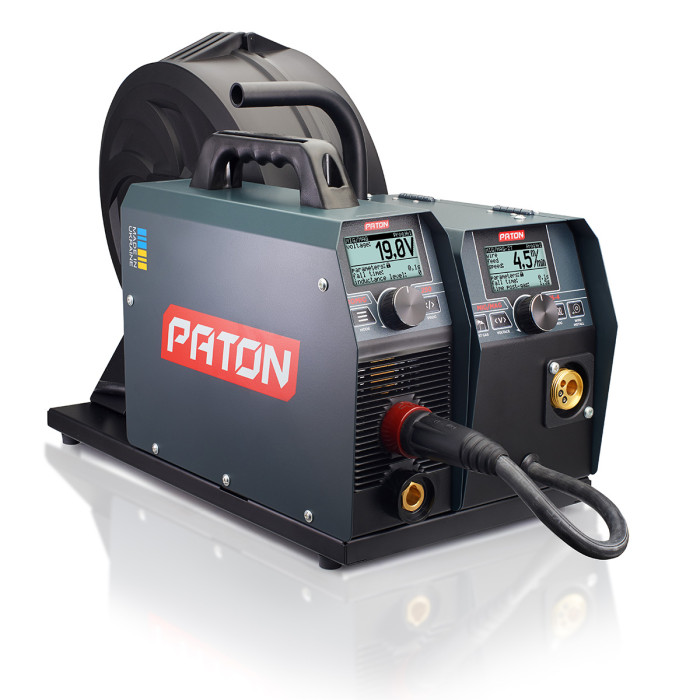

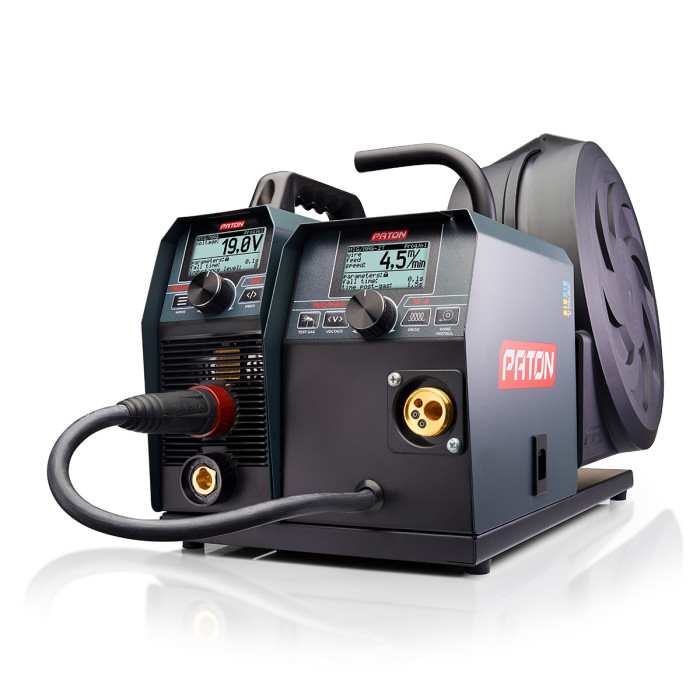

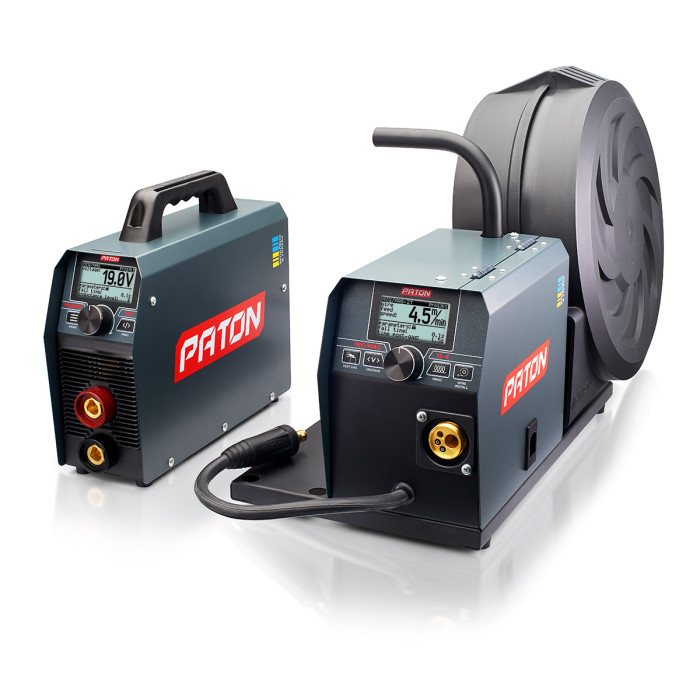

Digital semiautomatic inverter PATON ProMIG-250-15-4 - is a device for professional use, designed for manual arc welding (RDS MMA), TIG and semi-automatic welding (MIG/MAG), DC, in shielding gases and mixtures thereof. In ProMIG-250-15-4 machine has an all-digital way to manage, thereby ensuring its versatility and opportunities to fine tune the welding conditions. Expectancy increased load on the rated current to 250A, allows any electrode diameter from 1.6 mm to 6 mm (fusible), as well as semi-solid welding wire with a diameter of 0.6 to 1.2 mm. Due doublecase execution, a current source can be easily separated from the wire supply unit, which greatly improves the portability and usability in MMA and TIG modes.

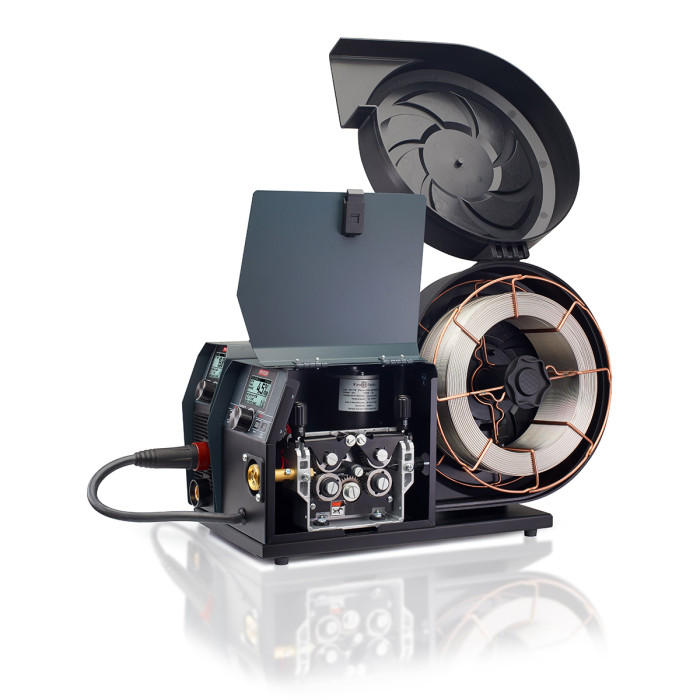

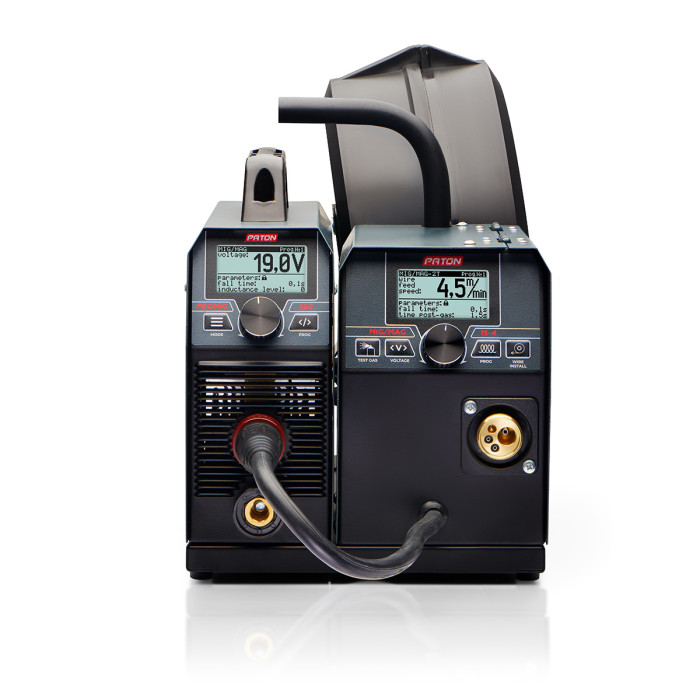

PATON ProMIG-250-15-4 equipped quality metallic 4-wire feed roller mechanism with a strong hermetic motor and the universal connector KZ-2 type ""EURO"" allows connecting welding torch from a wide range of manufacturers. Holder allows the welding wire coils weighing up to 15 kg. Model ProMIG-250-15-4 in conjunction with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen machine is easy and convenient to set up a solution to any problem. The device comes with high-quality accessories from the company ABICOR BINZEL, which allow you to immediately start work in MIG / MAG and MMA modes.

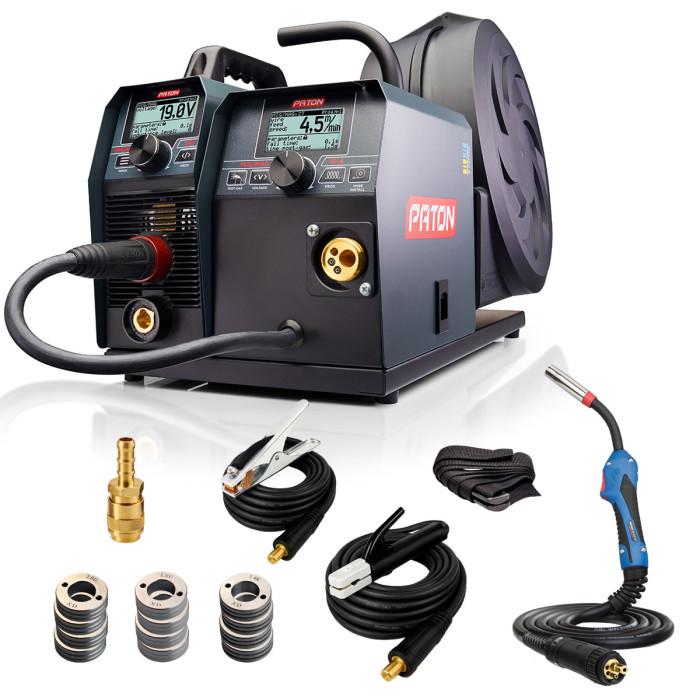

Complete set
  • The welding unit
  • The welding wire feeding unit (rollers for 0.6 -0.8 mm and 1.0 -1.2 mm)
  • The shoulder-carry belt
  • PATON™ branded corrugated box
  • The semi-automatic ABIMIG A255 LW welding torch with a cable 3 m in length
  • The welding cable 3 m in length with an Abicor Binzel DE2300 electrode holder
  • The welding cable 3 m in length with a Abicor Binzel МК300 grounding clamp
  • The quick-release nipple for a gas hose
  • The operation manual
