Specification
Rated power supply voltage, V | 220/230 |
Rated current consumption from the mains phase, А | 29,5 … 35 |
Rated welding current (A) | 250 |
Maximum operating current, A | 335 |
Operating load factor | 60% |
Power supply voltage range (V) | 160-260 |
Welding current control range (A) | 12 - 250 |
Diameter of a stick electrode, mm | 1,6-6,0 |
Diameter of solid welding wire, mm | 0,6 - 1,2 |
Number of rollers of the wire feed mechanism | 2 |
Pulse modes during welding | MMA/TIG |
Warranty period, month | 60 |
«Hot-Start» | Adjustable |
«Arc-Force» | Adjustable |
«Anti-Stick» | Auto |
Idle voltage reduction unit | on/off |
Idling voltage, V | 12 / 75 |
Arc ignition voltage, V | 110 |
Rated power consumption, kVA | 6,6-7,8 |
Maximum consumption,power kVA | 9,5 |
Cooling | Forced |
Overall dimensions, WxLxH, mm | 260х360х270 |
Weight, kg | 14 |
Protection rate | IP33 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

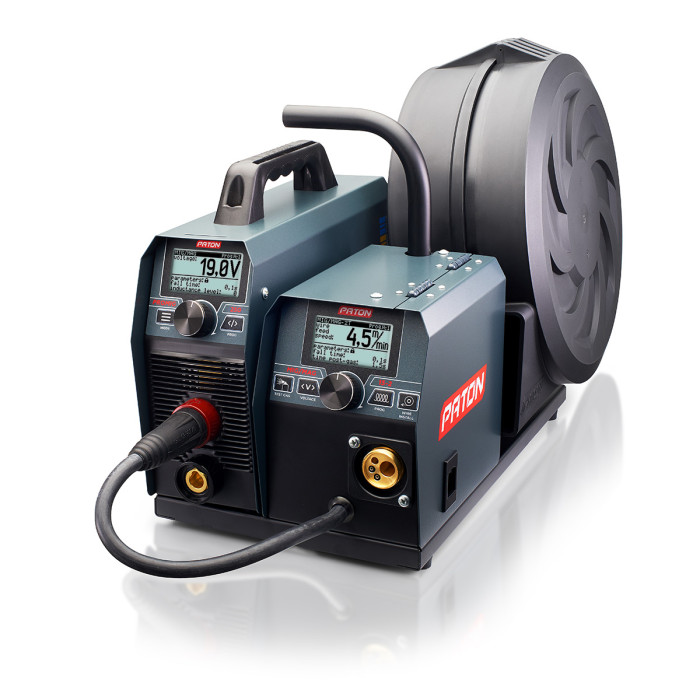

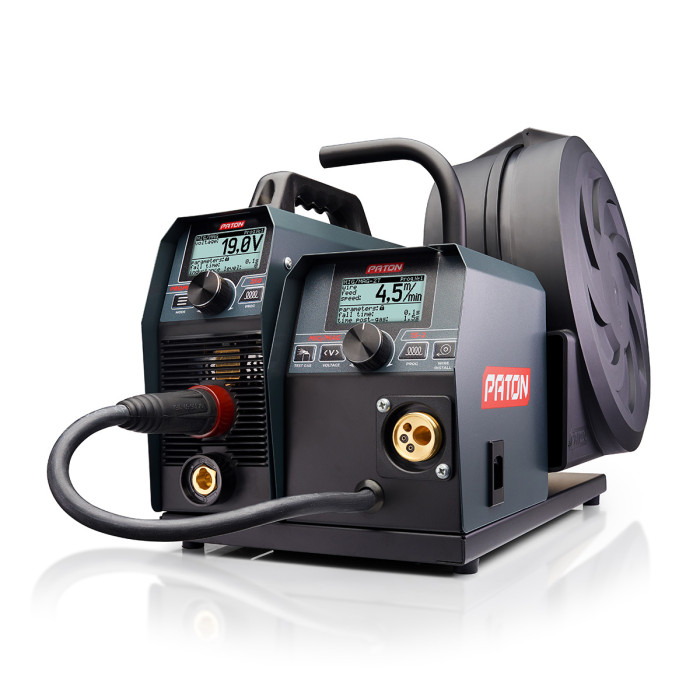

Digital semiautomatic inverter PATON ProMIG-250-15-2 - is a device for professional use, designed for semi-automatic welding (MIG/MAG), manual arc welding (RDS MMA), TIG DC, in shielding gases and mixtures thereof. In ProMIG-250-15-2 machine has an all-digital way to manage, thereby ensuring its versatility and opportunities to fine tune the welding conditions.
Expectancy increased load on the rated current to 250A, allows any electrode diameter from 1.6 mm to 6 mm (fusible), as well as semi-solid welding wire with a diameter of 0.6 to 1.2 mm.

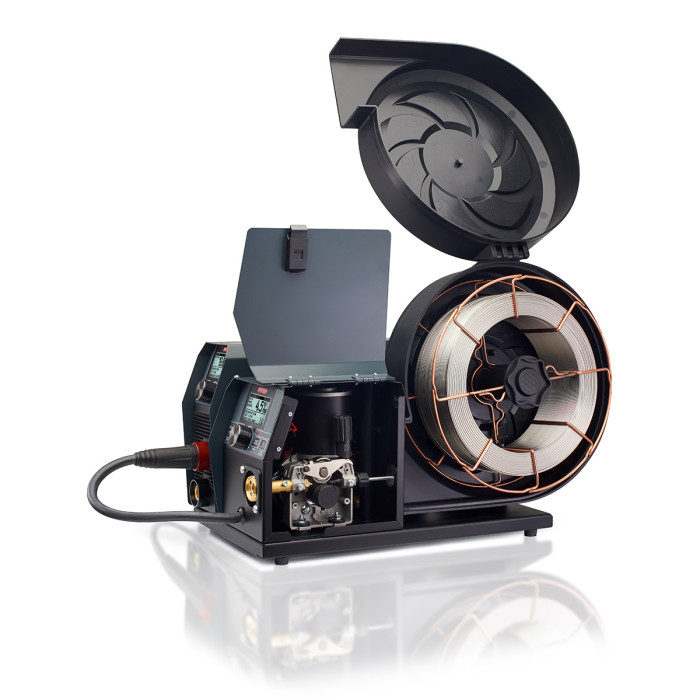

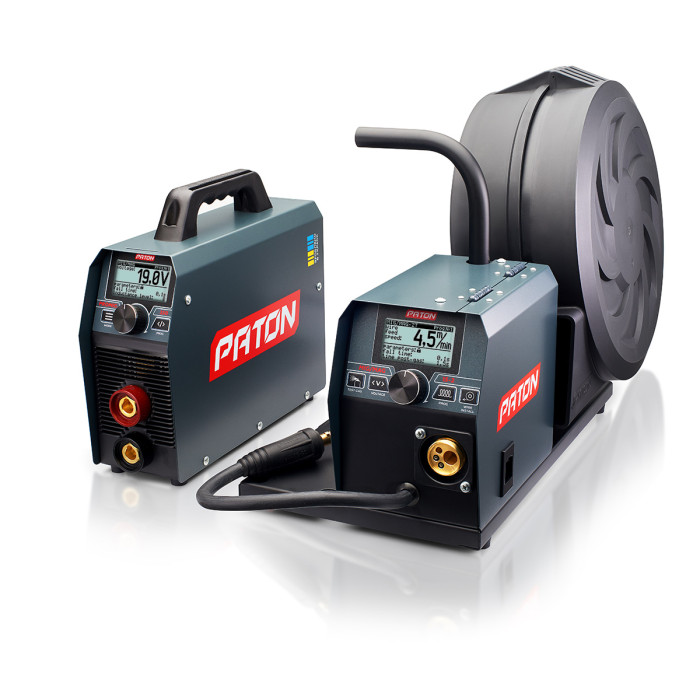

Due doublecase execution, a current source can be easily separated from the wire supply unit, which greatly improves the portability and usability in MMA and TIG modes. PATON ProMIG-250-15-2 equipped quality metal wire feeder with a strong hermetic motor, a universal connector KZ-2 type "EURO" allows connecting welding torch from a wide range of manufacturers. Powerful holder allows the welding wire coils weighing up to 15 kg.

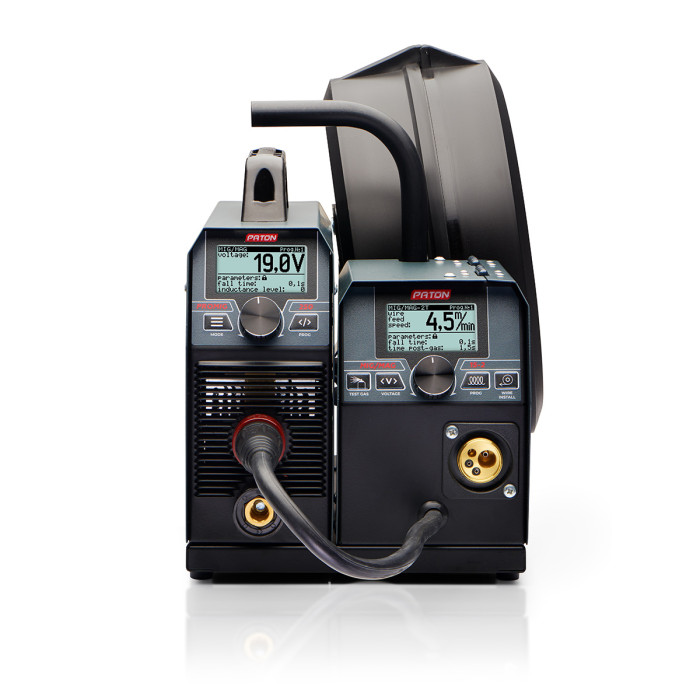

Model ProMIG-250-15-2 in conjunction with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen machine is easy and convenient to set up a solution to any problem.
The device comes with high-quality accessories from the company ABICOR BINZEL, which allow you to immediately start work in MIG / MAG and MMA modes.

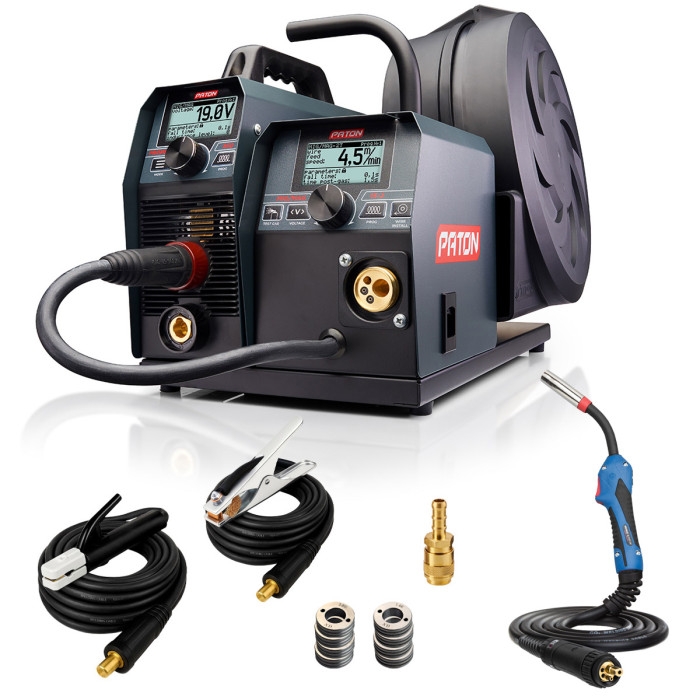

Complete set
- Welding machine
- Branded corrugated box PATON™
- Welding torch Abicor Binzel ABIMIG 255
- Electrode holder Abicor Binzel DE2300
- Earth terminal Abicor Binzel MK300
- Roll kits for 4 wire diameters
- Gas hose quick coupling
- User's manual
Additional materials
Testimonials
Specification
Rated power supply voltage, V | 220/230 |
Rated current consumption from the mains phase, А | 29,5 … 35 |
Rated welding current (A) | 250 |
Maximum operating current, A | 335 |
Operating load factor | 60% |
Power supply voltage range (V) | 160-260 |
Welding current control range (A) | 12 - 250 |
Diameter of a stick electrode, mm | 1,6-6,0 |
Diameter of solid welding wire, mm | 0,6 - 1,2 |
Number of rollers of the wire feed mechanism | 2 |
Pulse modes during welding | MMA/TIG |
Warranty period, month | 60 |
«Hot-Start» | Adjustable |
«Arc-Force» | Adjustable |
«Anti-Stick» | Auto |
Idle voltage reduction unit | on/off |
Idling voltage, V | 12 / 75 |
Arc ignition voltage, V | 110 |
Rated power consumption, kVA | 6,6-7,8 |
Maximum consumption,power kVA | 9,5 |
Cooling | Forced |
Overall dimensions, WxLxH, mm | 260х360х270 |
Weight, kg | 14 |
Protection rate | IP33 |

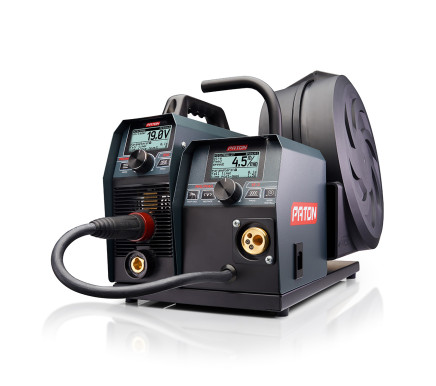

PATON™ ProMIG-250-15-2
