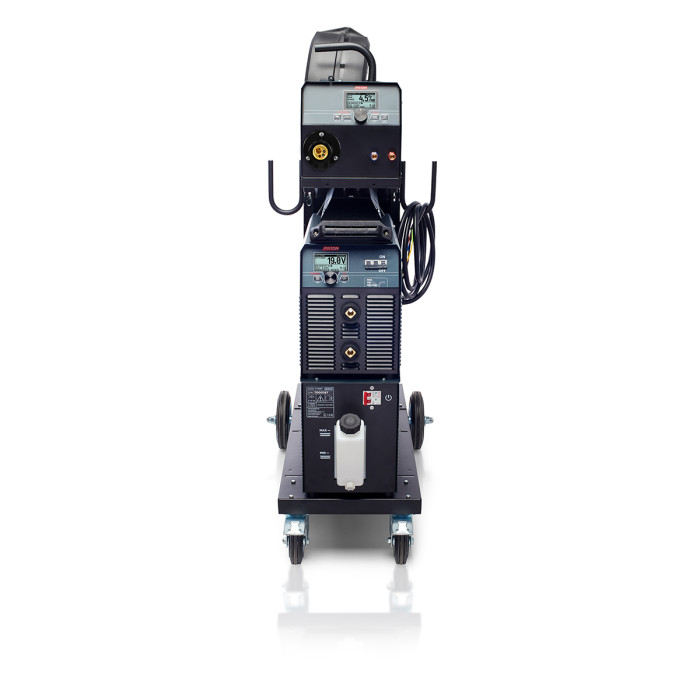

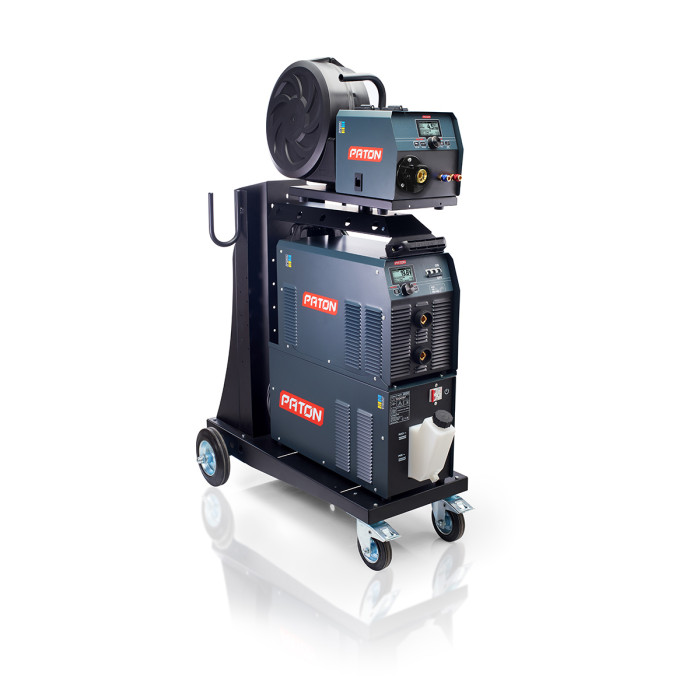

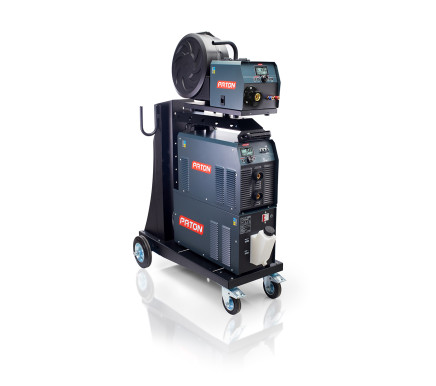

Welding set PATON™ ProMIG-630-15-4-400V WK MAXwire

The PATON ProMIG-630-15-4-400V WK MAXwire welding set is a complete solution for working with the PATON ProMIG-630-15-4-400V W MAXwire MIG/MAG machine.

Semi-automatic digital inverter PATON ProMIG-630-15-4-400V W MAXwire is a professional device designed for MIG/MAG welding, MMA and TIG DC welding. The device ProMIG-630-15-4-400V W MAXwire implemented a fully digital method of control, due to which its multifunctionality and wide possibilities in precise adjustment of welding modes are ensured. Increased load duration on the nominal current up to 630А, allows working with any electrodes with a diameter from 1.6 mm to refractory 8 mm, as well as semi-automatic welding with a solid wire with a diameter from 1.2 to 2.0 mm. Thanks to the double-case design, the current source can be easily separated from the wire-weeding unit, significantly increasing the mobility and convenience of operation in MMA and TIG modes.

PATON ProMIG-630-15-4-400V W MAXwire is equipped with a high-quality strengthened metal 4-roller wire feeding mechanism with a powerful sealed engine which makes it possible to weld with flux-cored wire up to 3,2 mm in diameter. A universal connector of KZ-2 type "EURO" allows you to connect welding burners from a wide range of manufacturers. A powerful bracket for welding wire allows you to install coils weighing up to 15 kg. Also, the wire-feeder is equipped with two connectors for connecting liquid cooling hoses and a cable with power contacts.

The ProMIG-630-15-4-400V W MAXwire model, combined with high power and performance, has a small weight and overall dimensions. And thanks to LCD screens, the device is easy and convenient to configure to solve any problem.

PATON Cooler-7 is designed to provide excellent cooling accessories (welding torches, plasma torches), when operating with the welding apparatus and installations plasma cutting. The autonomous cooling unit has a liquid flow sensor, which protects the burner from combustion in the event of cessation of fluid circulation. Cooler-7 model provides a reliable cooling of the burner works at high currents (> 300A for semiautomatic and> 140A for TIG welding) and is an integral part of the welding equipment operating in these conditions. Cooler-7 accommodates up to 7 liters of coolant and provides its circulation in a closed system with a high capacity (liquid supply to a height of 10 meters) and productivity (up to 6.5 l / min).
