| Cooling | Adaptive |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 17 … 20 |
| Rated welding current (A) | 150 |
| Maximum operating current, A | 200 |
| Rated input current from mains, А | 12 – 23 |
| Operating load factor | 80% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 8 - 150 |
| Limits of regulation of speed of giving of a wire, m / min. | 1,0 - 10,0 |
| Diameter of a stick electrode, mm | 1,6-4 |
| Diameter of solid welding wire, mm | 0,6 - 1,0 |
| Weight of the coil no more, kg | 5 |
| Pulse modes during welding | MMA; TIG; |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 3,8 … 4,4 |
| Torch trigger mode | 2T, 4T, SPOT |
| Maximum consumption,power kVA | 5,5 |
| Overall dimensions, WxLxH, mm | 390х194х295 |
| Gross weight, kg | 12,7 |
| Weight, kg | 9,2 |
| Protection rate | IP33 |

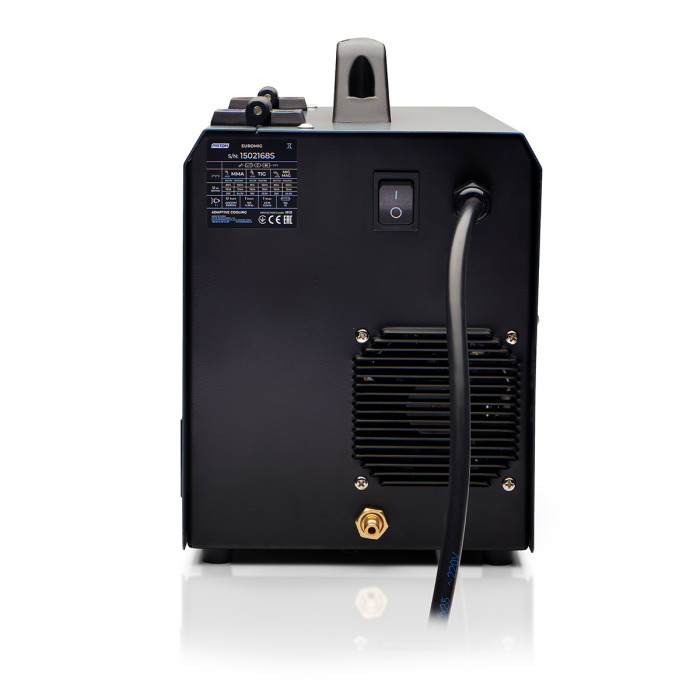

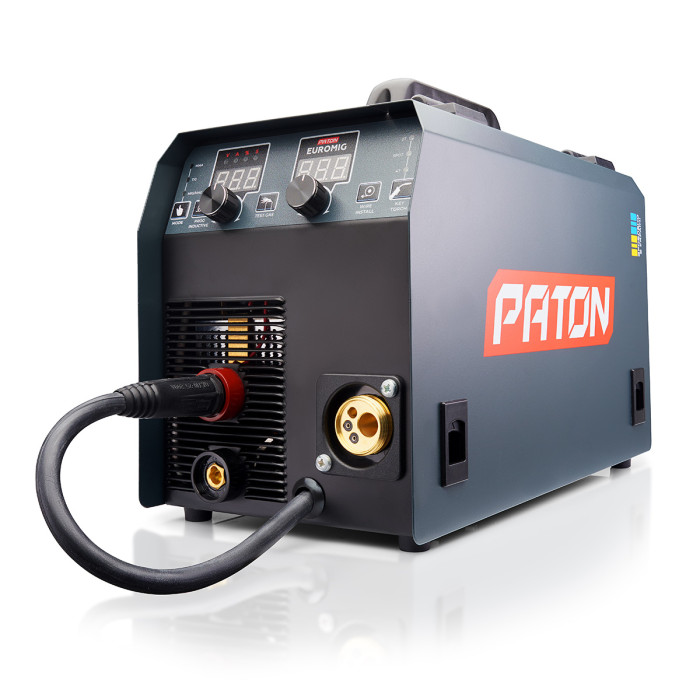

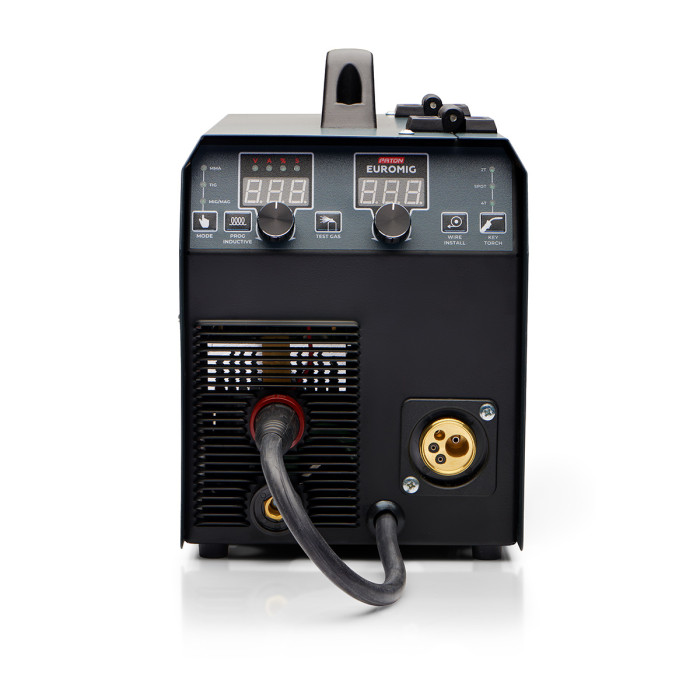

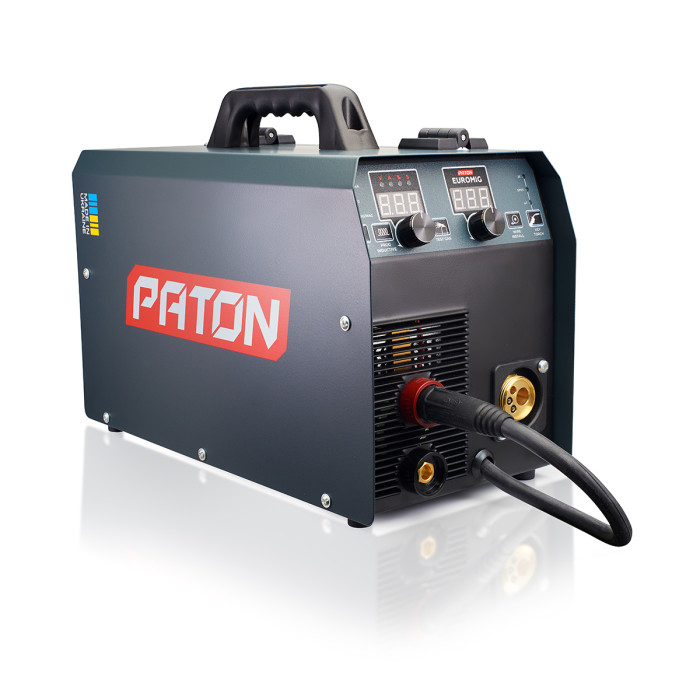

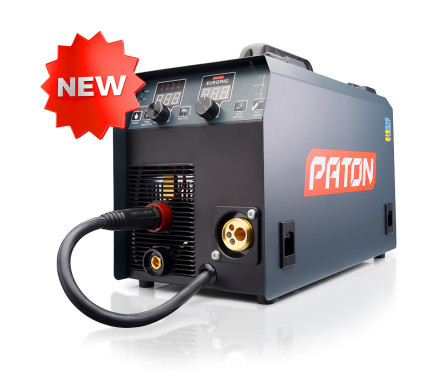

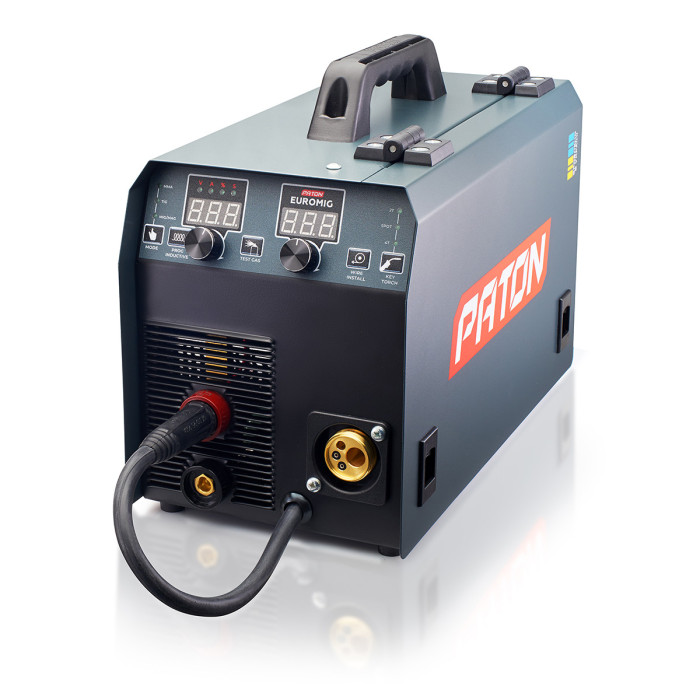

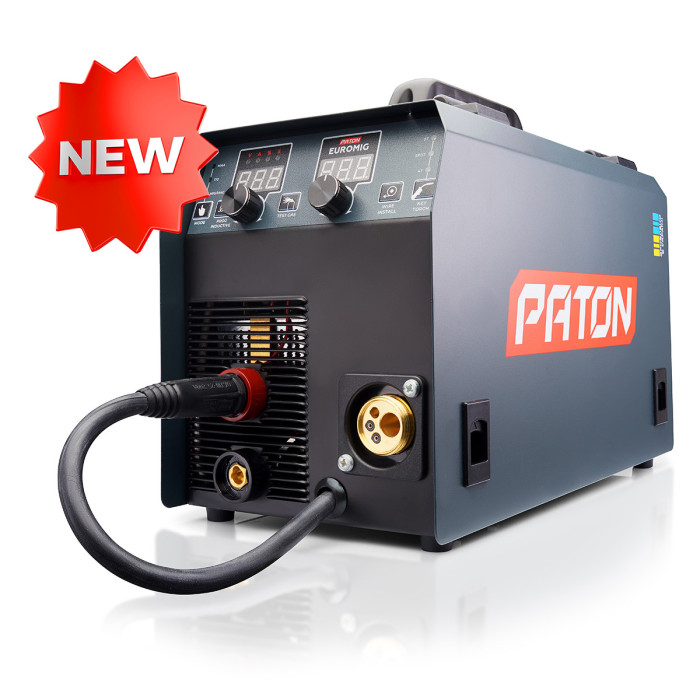

Digital semiautomatic inverter PATON EuroMIG - is intended for semi-automatic welding (MIG/MAG), manual arc welding (MMA), TIG on a direct current in a medium, and shielding gas mixtures. The device EuroMIG is implemented a fully digital way to manage, thereby ensuring its versatility and ample opportunity to fine tune the welding conditions. Issue unit 150A to the rated current enables any working electrodes with diameters from 1.6 mm to 4 mm and a solid welding wire with diameters from 0.6 mm to 1.0 mm. A separate closed compartment for welding wire improves its protection against dust and other contaminants.

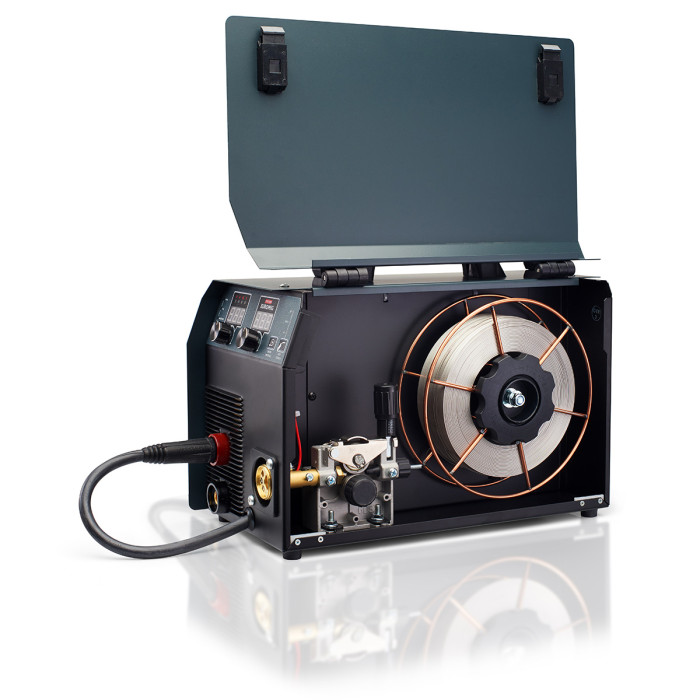

PATON EurodMIG is equipped with a 2 roller metal wire feeder, and a universal connector KZ-2 type "EURO" allows connecting welding torch from a wide range of manufacturers. EuroMIG, in conjunction with high power and capacity, has a low weight and dimensions.
- Welding machine
- Branded corrugated box PATON
- Earth terminal Abicor Binzel MK300 - 2 m
- Gas hose quick coupling
- User's manual
| Cooling | Adaptive |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 17 … 20 |
| Rated welding current (A) | 150 |
| Maximum operating current, A | 200 |
| Rated input current from mains, А | 12 – 23 |
| Operating load factor | 80% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 8 - 150 |
| Limits of regulation of speed of giving of a wire, m / min. | 1,0 - 10,0 |
| Diameter of a stick electrode, mm | 1,6-4 |
| Diameter of solid welding wire, mm | 0,6 - 1,0 |
| Weight of the coil no more, kg | 5 |
| Pulse modes during welding | MMA; TIG; |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 3,8 … 4,4 |
| Torch trigger mode | 2T, 4T, SPOT |
| Maximum consumption,power kVA | 5,5 |
| Overall dimensions, WxLxH, mm | 390х194х295 |
| Gross weight, kg | 12,7 |
| Weight, kg | 9,2 |
| Protection rate | IP33 |
