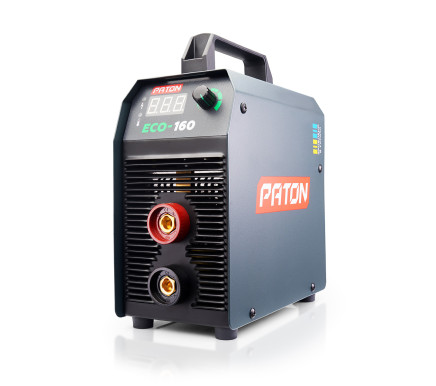

PATON ECO-160

Code: 1012016012
Code: 1012016012
In Stock
  • 5999 грн
Pay in installments
999 hrn
x 6 month
6
6
6
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Free
Specification
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 20
Rated welding current (A) 160
Maximum operating current, A 190
Operating load factor 40%
Power supply voltage range (V) 170-260
Welding current control range (A) 20 - 160
Diameter of a stick electrode, mm 1,6-4,0
Rated power consumption, kVA 4,4
Warranty period, month 60
«Hot-Start» Auto
«Arc-Force» Auto
«Anti-Stick» Auto
Idling voltage, V to 80
Arc ignition voltage, V 110
Maximum consumption,power kVA 5.5
Efficiency, % 90
Cooling Forced
Overall dimensions, WxLxH, mm 100х200х240
Gross weight, kg 6
Weight, kg 3,7
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

Inverter rectifiers PATON ECO‐160 is designed for direct current manual arc welding (MMA). This Eco series is intended for demanding users, who need the most compact and powerful machine with full rated current of 160 A respectively. This current is enough to work with any electrodes from Ф1.6 mm to Ф5 mm in diameter, including high‐melting electrodes. At the same time, its load duration is 40% and higher, which is more than enough for most applications more demanding than household use (workshops, motor transport services etc.).

All brand PATON™ ECO models produced by PATON are equipped with a built‐in undervoltage protection unit. Due to increased frequency of voltage supplied to the transformer, the transformer can be made tenfold smaller. That’s why weight and overall dimensions of this machine is several times smaller than those of regular equipment with identical output parameters.

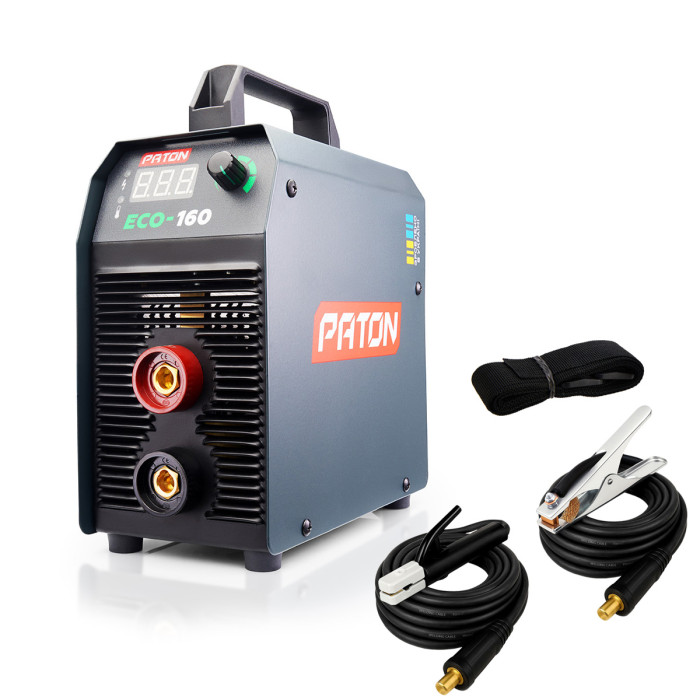

Complete set
  • The welding unit
  • The shoulder-carry belt
  • PATON™ branded box
  • The welding cable 3 m in length with an electrode holder
  • The welding cable 3 m in length with grounding clamp
  • The operation manual
Additional materials
Testimonials
Specification
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 20
Rated welding current (A) 160
Maximum operating current, A 190
Operating load factor 40%
Power supply voltage range (V) 170-260
Welding current control range (A) 20 - 160
Diameter of a stick electrode, mm 1,6-4,0
Rated power consumption, kVA 4,4
Warranty period, month 60
«Hot-Start» Auto
«Arc-Force» Auto
«Anti-Stick» Auto
Idling voltage, V to 80
Arc ignition voltage, V 110
Maximum consumption,power kVA 5.5
Efficiency, % 90
Cooling Forced
Overall dimensions, WxLxH, mm 100х200х240
Gross weight, kg 6
Weight, kg 3,7
Protection rate IP21
