Specification
| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 17,7 |
| Rated welding current (A) | 350 |
| Maximum operating current, A | 450 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 50 - 350 |
| Dimensions L / W / H | 390 х 145 х 335 |
| Diameter of a stick electrode, mm | 2-6 |
| Machine weight | 9,8 |
| Warranty period, month | 36 |
| «Hot-Start» | Auto |
| «Arc-Force» | Auto |
| «Anti-Stick» | Auto |
| Idling voltage, V | up to 80 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 11,7 |
| Maximum consumption,power kVA | 15,2 |
| Efficiency, % | 90 |
| Cooling | Forced |
| Protection rate | IP33 |
Show all specifications
Duty cycle – 70%
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network ±15% V
Unique ratio of mass and size characteristics with high power
Description
Invertor rectifiers PATON Standard-350-400V is intended for DC manual metal arc welding (MMA). This Standard series is for demanding users who need the most compact and powerful machine with a rated current of 350A. This is enough to use any electrodes, Ø2 mm to Ø6 mm, including high-melting ones, while the load duration at the rated current is at least 70%, which allows using the machine in the industrial sector (medium-size enterprises, large workshops, fleets, etc.).
Thanks to the ease of adjustment, high power, and small weight and dimensions, the device provides comfort and ease of operation.

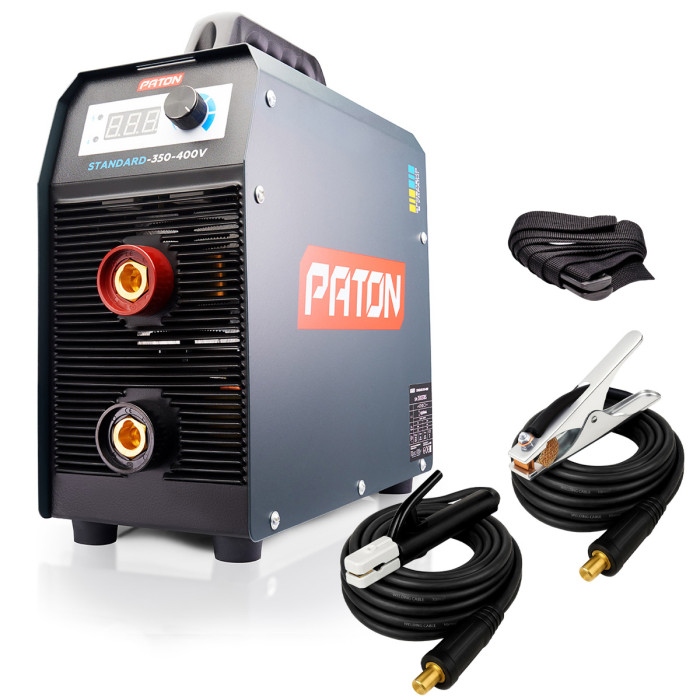

Complete set
- The welding unit
- The shoulder-carry belt
- PATON branded corrugated box
- The 3 m in-length welding cable with an Abicor Binzel DE2300 electrode holder
- The 3 m in-length welding cable with an Abicor Binzel МК300 grounding clamp
- The operation manual
Additional materials
Testimonials
Specification
| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 17,7 |
| Rated welding current (A) | 350 |
| Maximum operating current, A | 450 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 50 - 350 |
| Dimensions L / W / H | 390 х 145 х 335 |
| Diameter of a stick electrode, mm | 2-6 |
| Machine weight | 9,8 |
| Warranty period, month | 36 |
| «Hot-Start» | Auto |
| «Arc-Force» | Auto |
| «Anti-Stick» | Auto |
| Idling voltage, V | up to 80 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 11,7 |
| Maximum consumption,power kVA | 15,2 |
| Efficiency, % | 90 |
| Cooling | Forced |
| Protection rate | IP33 |

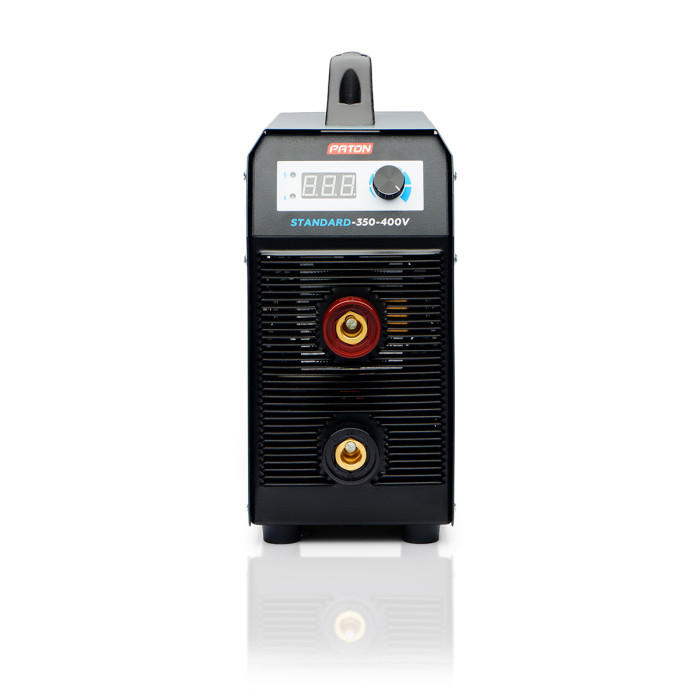

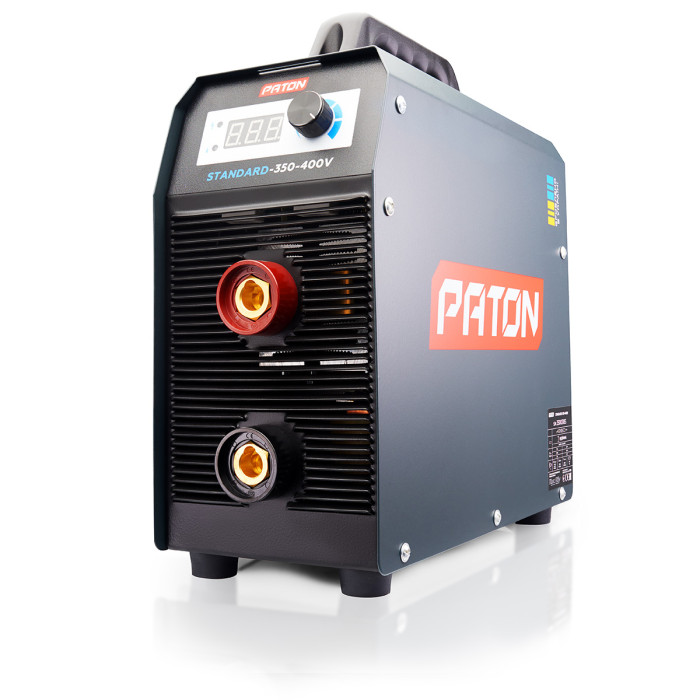

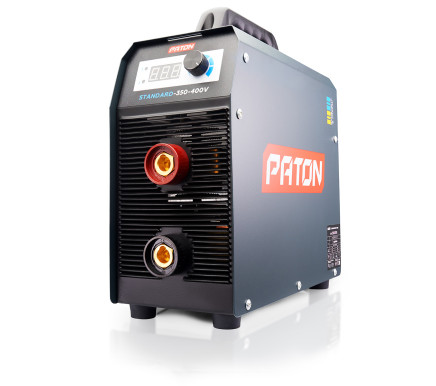

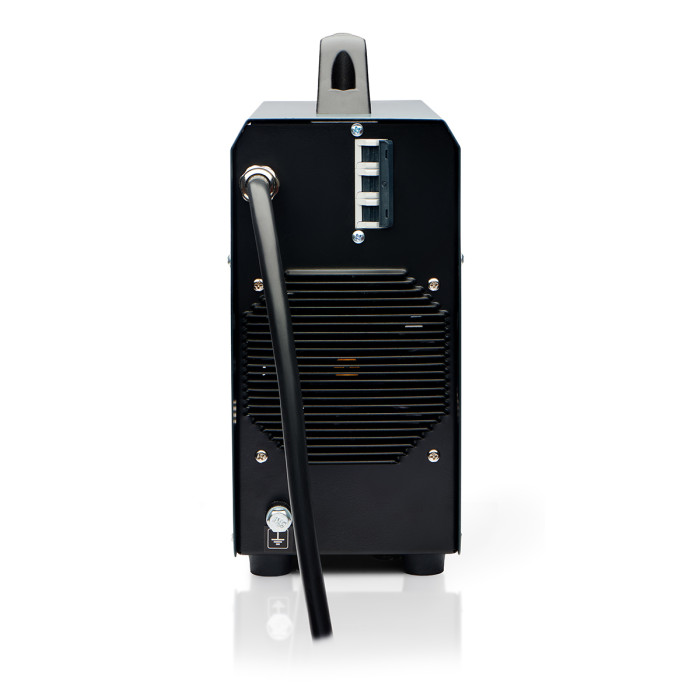

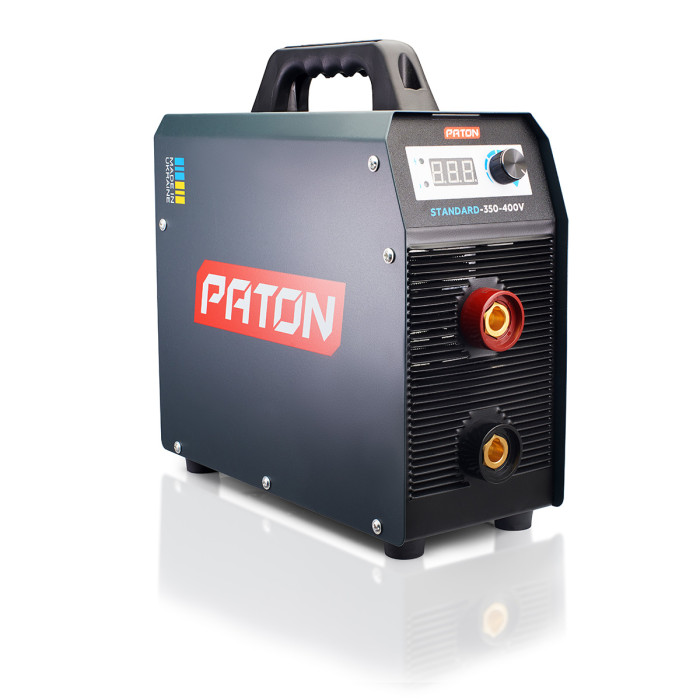

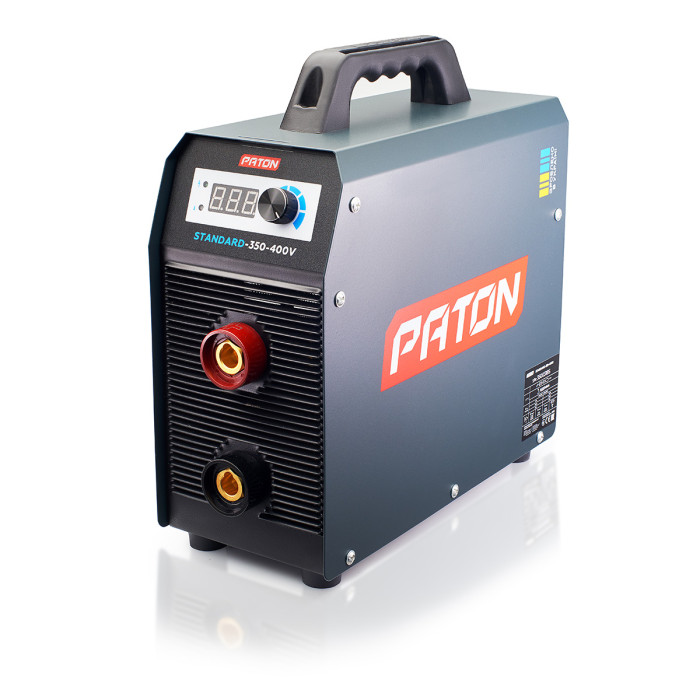

PATON Standard-350-400V
Code: 1013035012
In Stock
