| Non-contact ignition unit (oscillator) | TIG HF |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 23 - 27 |
| Rated welding current (A) | 200 |
| Maximum operating current, A | 270 |
| Operating load factor | 70% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 10 - 200 |
| Diameter of a stick electrode, mm | 1,6-5,0 |
| Diameter of solid welding wire, mm | 0,6 - 1,0 |
| PULSE function | MMA / TIG / MIG / MAG – synergic |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 5,1 - 6,1 |
| Maximum consumption,power kVA | 7,5 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 260х360х270 |
| Weight, kg | 13,3 |
| Protection rate | IP33 |

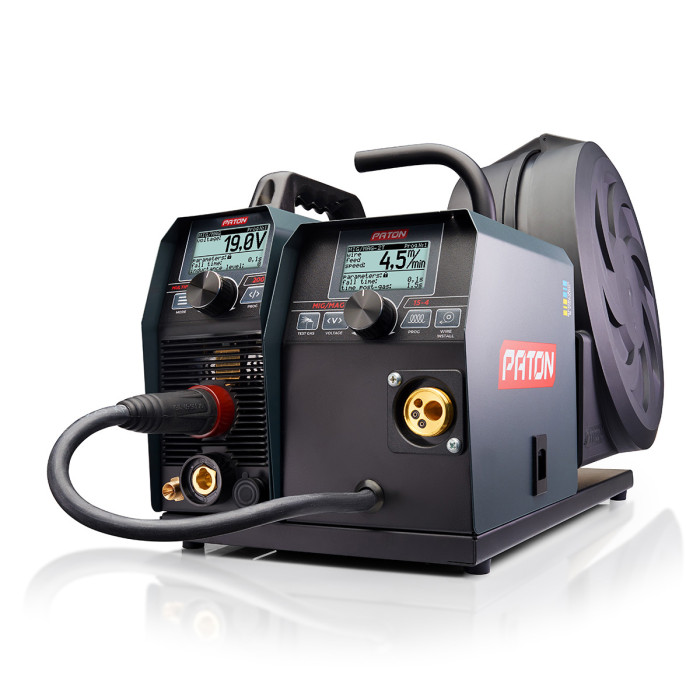

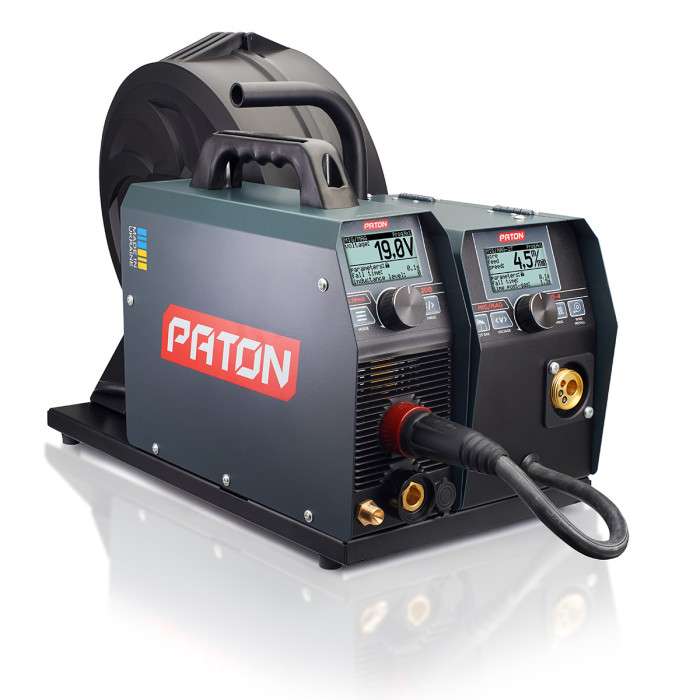

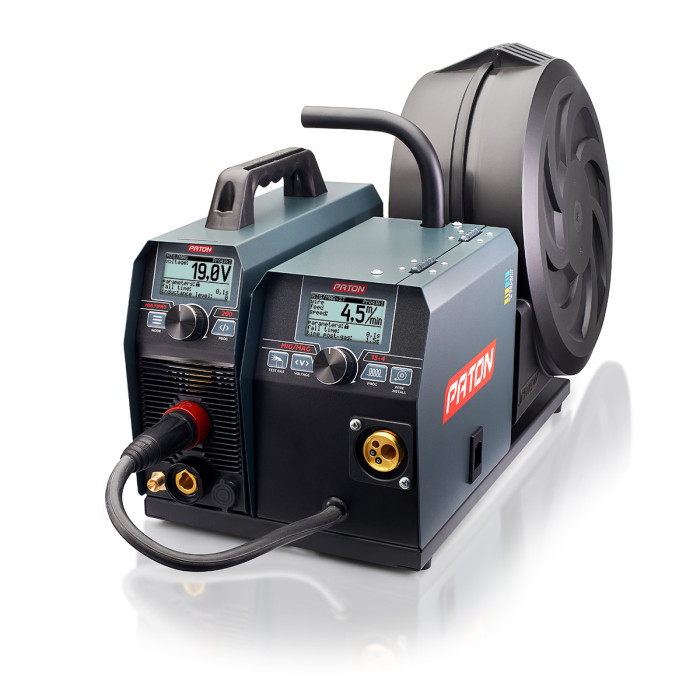

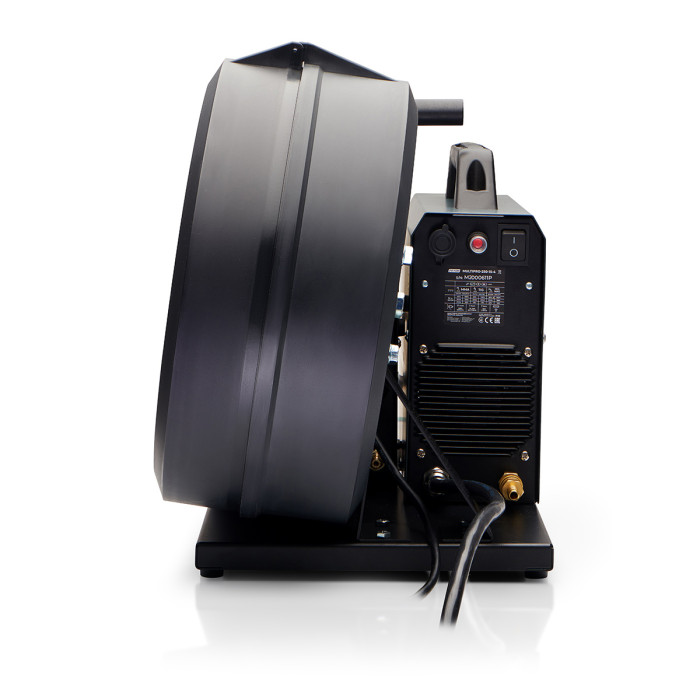

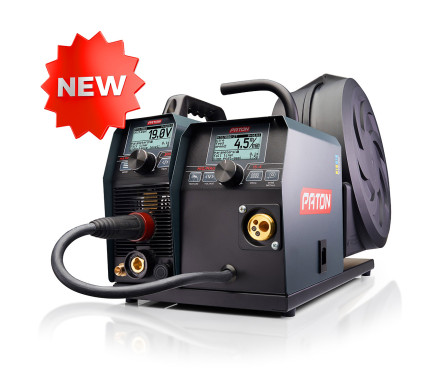

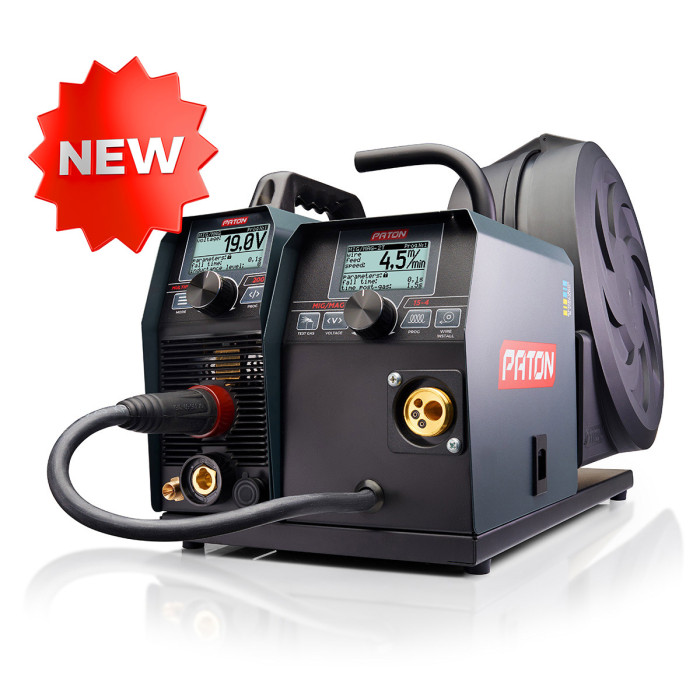

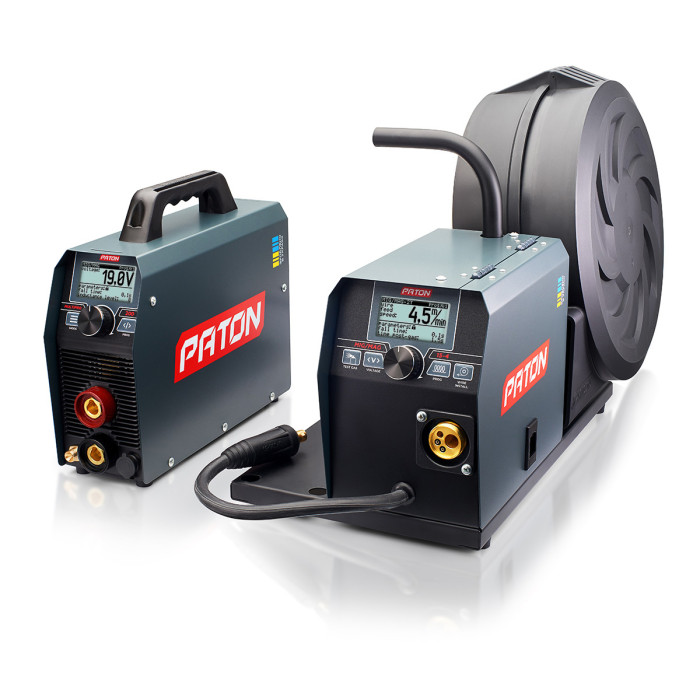

The PATON MultiPRO-200-15-4 inverter is a multifunctional welding unit with a digital control system. It is designed for Manual Metal Arc (MMA) welding, Tungsten Inert Gas (TIG) welding, and Metal Inert/Active Gas (MIG/MAG) semi-automatic welding in shielding gases and gas mixtures. The dual-body design of the MultiPRO-200-15-4 allows the power source to be detached from the wire feeder, significantly improving mobility and convenience when working in MMA and TIG modes. With a nominal current of 200 A, the unit is suitable for welding with all types of electrodes ranging from 1.6 mm to 5 mm (low-melting) and for semi-automatic welding with solid wire from 0.6 mm to 1.0 mm in diameter.

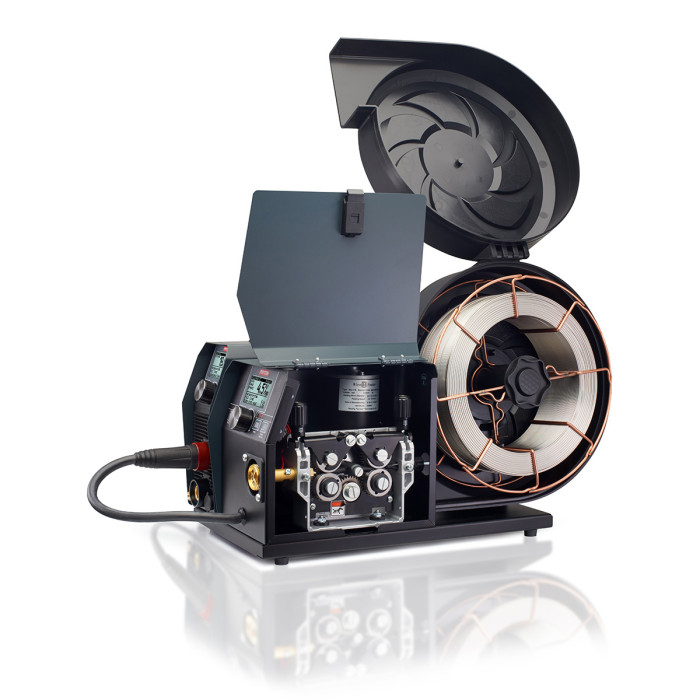

The machine is equipped with a non-contact arc ignition unit (oscillator) for TIG mode and a durable 4-roller metal wire feeding mechanism with a sealed motor.
The KZ-2 “EURO” connector provides compatibility with torches from a wide range of manufacturers.
The PATON MultiPRO-200-15-4 comes with a complete set of reliable accessories from the German manufacturer ABICOR BINZEL, allowing immediate operation in all four modes (MMA / TIG / MIG / MAG) right after purchase.
Combining high power and performance with compact dimensions and lightweight design, the MultiPRO-200-15-4 ensures maximum comfort in any welding application.

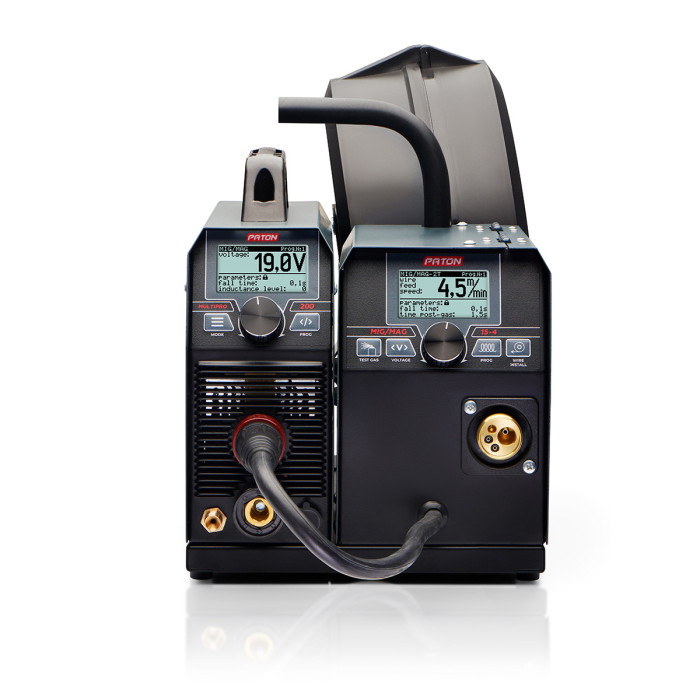

Thanks to the LCD display, all parameters can be easily adjusted for any specific task.
- The welding unit
- The welding wire feeding unit (rollers for 0.6 -0.8 mm and 1.0 -1.2 mm)
- The shoulder-carry belt
- PATON™ branded corrugated box
- The semi-automatic ABIMIG A255 LW welding torch with a cable 3 m in length
- The ABITIG 26 argon-arc torch with a cable 4 m in length
- The welding cable 3 m in length with an Abicor Binzel DE2300 electrode holder
- The welding cable 3 m in length with a Abicor Binzel МК300 grounding clamp
- The quick-release nipple for a gas hose
- The operation manual
| Non-contact ignition unit (oscillator) | TIG HF |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 23 - 27 |
| Rated welding current (A) | 200 |
| Maximum operating current, A | 270 |
| Operating load factor | 70% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 10 - 200 |
| Diameter of a stick electrode, mm | 1,6-5,0 |
| Diameter of solid welding wire, mm | 0,6 - 1,0 |
| PULSE function | MMA / TIG / MIG / MAG – synergic |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 5,1 - 6,1 |
| Maximum consumption,power kVA | 7,5 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 260х360х270 |
| Weight, kg | 13,3 |
| Protection rate | IP33 |
