Specification
| Coolant tank volume, L | 8 |
| Cooling capacity, kW at 1 liter/min. | 1 |
| Maximum feed rate, l/min. | 6,5 |
| Rated current consumption from the mains phase, A | 1,23 |
| Cooling liquid | BTC-50 |
| Availability of a liquid flow sensor | + |
| Duty cycle, % | 100 |
| Rated power supply voltage, V | 220 |
| Power, W | 270 |
| Power supply voltage range (V) | 220±15% |
| Warranty period, month | 12 |
| Overall dimensions, WxLxH, mm | 522х267х382 |
| Weight, kg | 16 |
| Protection rate | IP21 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description
PATON Cooler-8S
is designed to provide excellent cooling to accessories (welding torches,
plasma torches) when operating with welding devices and plasma cutters. The
Cooler-8S model provides a reliable cooling of the torch during works at high
currents (more than 300A for semiautomatic and more than 140A for TIG welding)
and is an integral part of the welding equipment operating in these conditions.
Cooler-8S accommodates up to 8 liters of coolant and provides its circulation
in a closed system with a high capacity (liquid supply to a height of 10
meters) and productivity (up to 6.5 l / min).
The unit is
equipped with a fluid flow sensor to prevent the failure of accessories in the
event of an unexpected interruption in the flow of coolant.
Complete set
- Autonomous cooling unit
- Jumper strap
- Quick-release nipple (2 pcs)
- Metal clamp
- Branded corrugated box
PATON
- The operation manual
Additional materials
Testimonials
Specification
| Coolant tank volume, L | 8 |
| Cooling capacity, kW at 1 liter/min. | 1 |
| Maximum feed rate, l/min. | 6,5 |
| Rated current consumption from the mains phase, A | 1,23 |
| Cooling liquid | BTC-50 |
| Availability of a liquid flow sensor | + |
| Duty cycle, % | 100 |
| Rated power supply voltage, V | 220 |
| Power, W | 270 |
| Power supply voltage range (V) | 220±15% |
| Warranty period, month | 12 |
| Overall dimensions, WxLxH, mm | 522х267х382 |
| Weight, kg | 16 |
| Protection rate | IP21 |

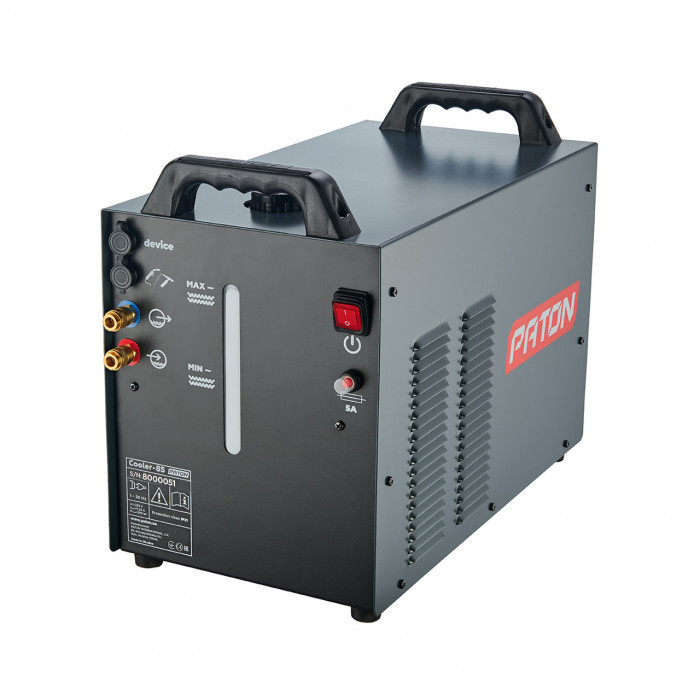

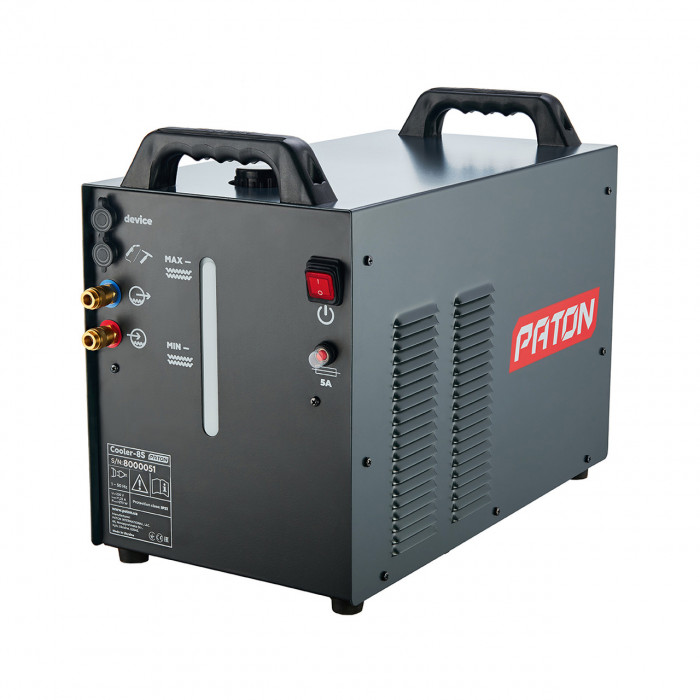

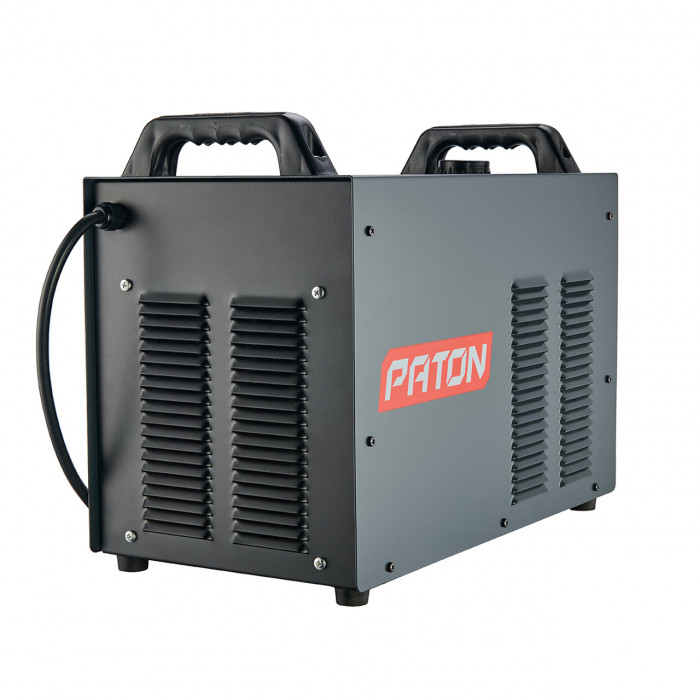

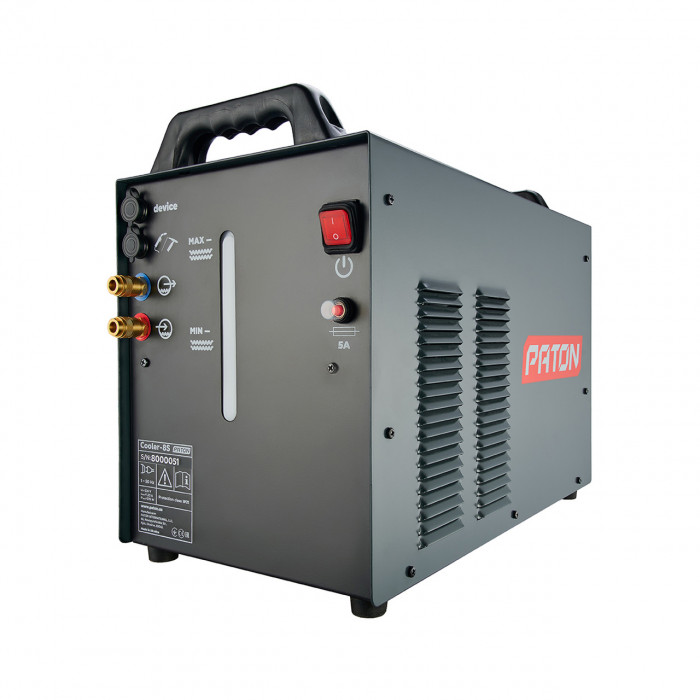

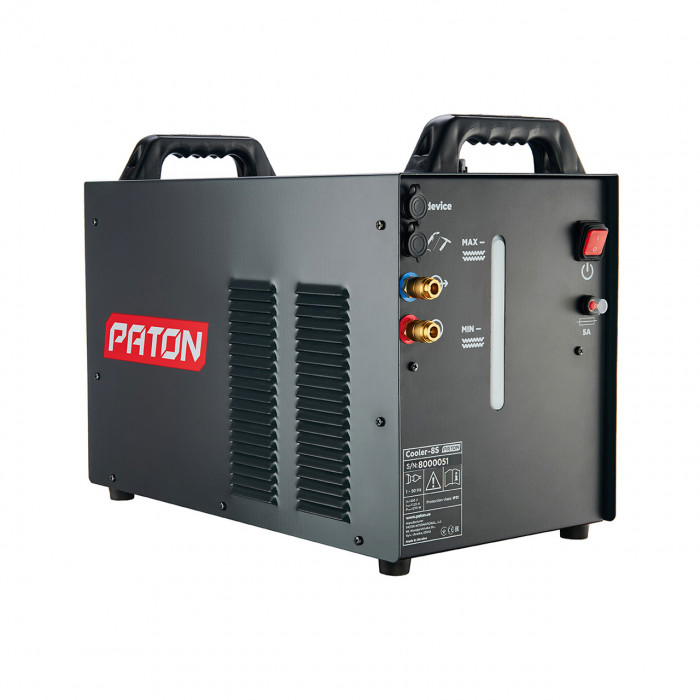

Autonomous cooling unit PATON Cooler-8S
Code: 1070000312
In Stock
- 16999 грн
- 13599 грн
