Specification
| Rated welding current (A) | 315 |
| Operating load factor | 60% |
| Welding current control range (A) | 10 - 315 |
| Dimensions L / W / H | 580 х 395 х 505 |
| Warranty period, month | 12 |
| Weight, kg | 22 |
| Protection rate | IP21 |
Show all specifications
Description
The ballast resistor RBP-304 type is designed for current control in manual welding and surfacing of metals with a fused electrode from multi-operator welding rectifiers and DC generators. The ballast resistor is to be connected in series with an electrode holder in the arc-welding circuit.
The resistor complies with the requirements of design documentation for operation at altitudes up to 1000 m above sea level, ambient temperature from -45° to +40° C and relative humidity of no more than 80% at 20° C and at lower temperatures without condensation.
Complete set
- Ballast
resistor type RBP-304 -1 pc;
- BSB 35-50 connector - 2 pcs;
- User's
manual - 1 pc.
Additional materials
Testimonials
Specification
| Rated welding current (A) | 315 |
| Operating load factor | 60% |
| Welding current control range (A) | 10 - 315 |
| Dimensions L / W / H | 580 х 395 х 505 |
| Warranty period, month | 12 |
| Weight, kg | 22 |
| Protection rate | IP21 |

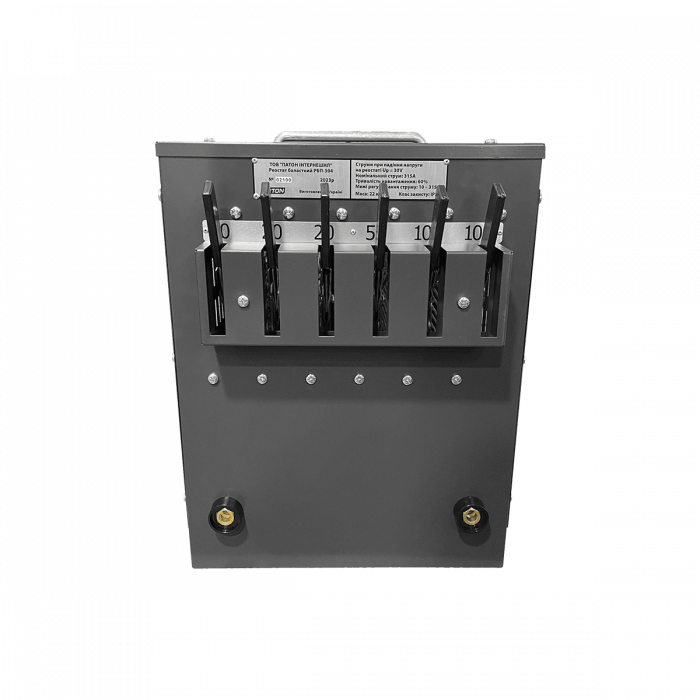

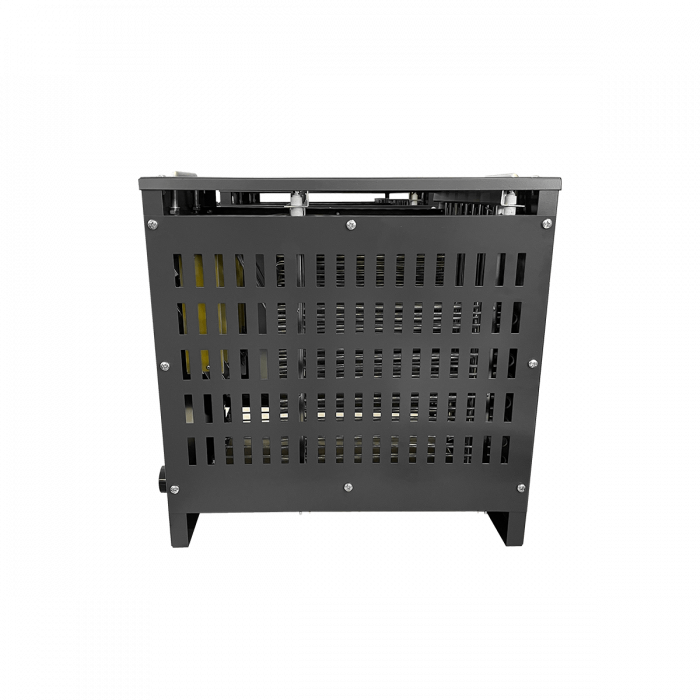

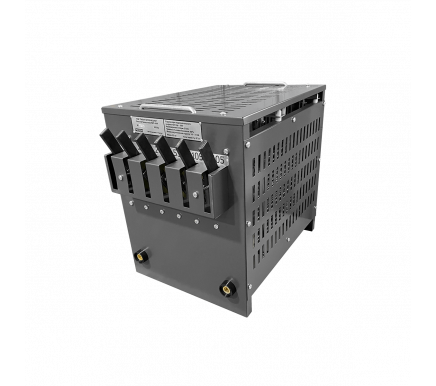

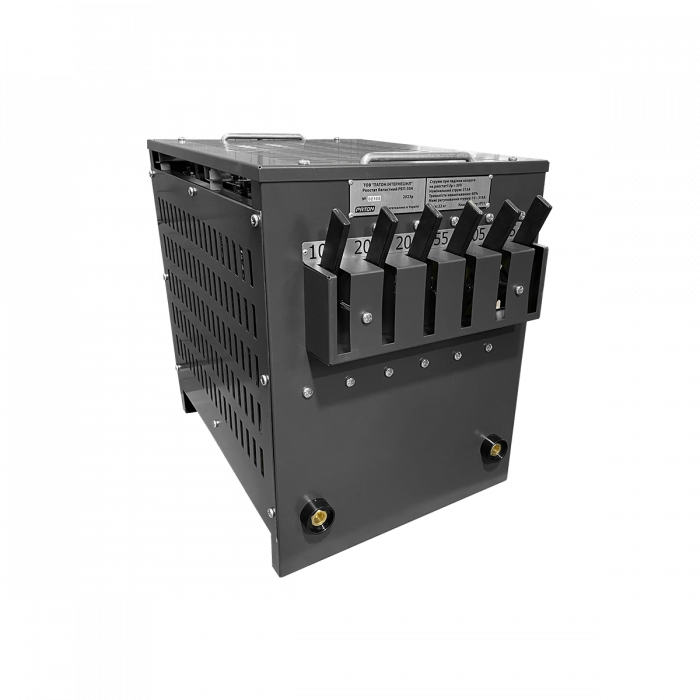

Ballast resistor RBP-304
Code: 20324658
In Stock
- 19999 грн
