PATON™ ProTIG-200 AC/DC

Code: 1034020012
Code: 1034020012
In Stock
  • 39999 грн
Pay in installments
6666 hrn
x 6 month
6
6
6
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Free
Specification
Rated power supply voltage, V 220/230
Rated welding current (A) 200
Operating load factor 50%
Power supply voltage range (V) 210-240
Welding current control range (A) 5 - 200
Diameter of a stick electrode, mm 1,6-5
Contactless arc ignition +
Warranty period, month 24
Welding current indication +
Memorizing modes +
Starting current regulation, A 5-185
Torch trigger mode 2Т,4Т
Regulation of current rise time, sec 0-15
Idling voltage, V to 80
Regulation of the downslope time, sec 0-25
Frequency of alternating welding current, Hz 15-250
Polarity balance when welding on alternating current,% 15-90
Rated power consumption, kVA 6,3
Overall dimensions, WxLxH, mm 146х365х438
Weight, kg 13,5
Protection rate IP23
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

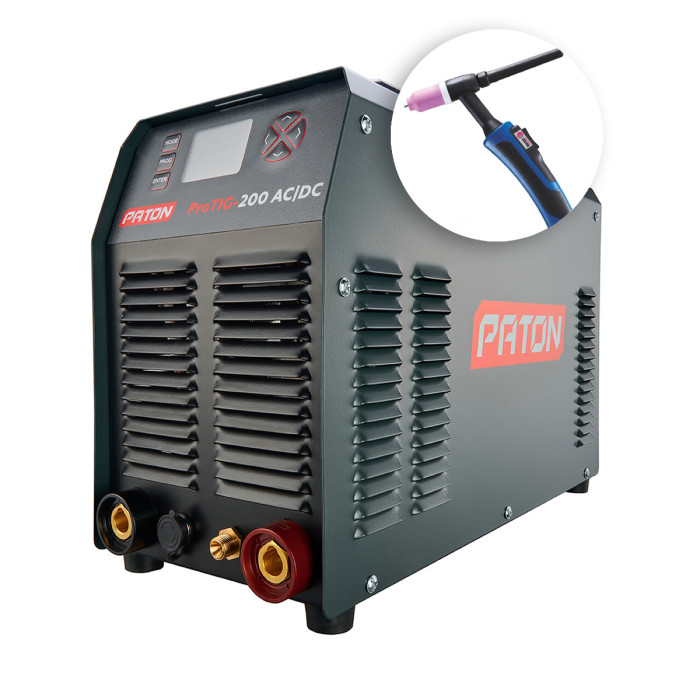

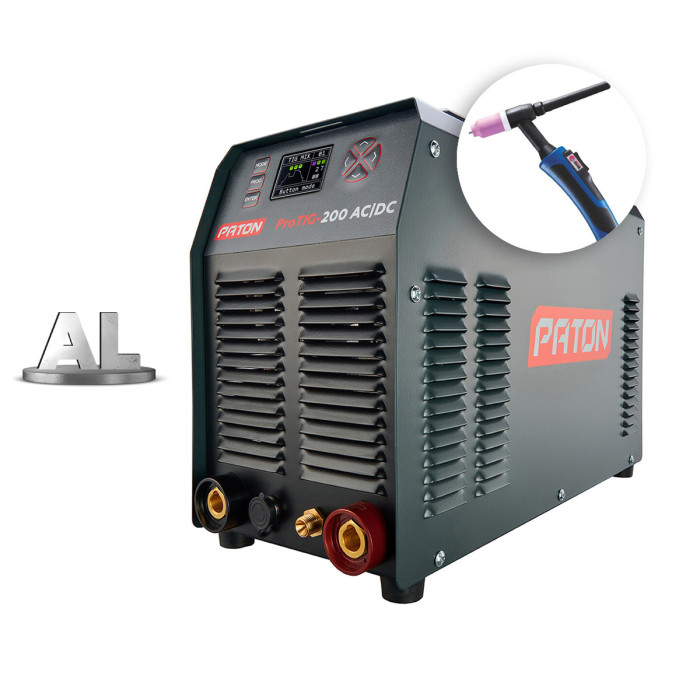

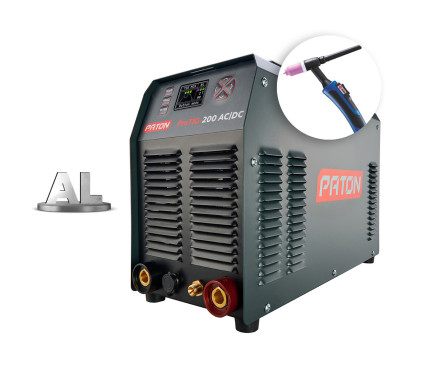

Argon inverter PATON PROTIG-200 AC/DC - enough multifunctional apparatus designed for TIG AC/DC welding, MMA manual arc welding , and availability of spot (cold) welding mode – SPOT. PROTIG-200 AC/DC Model - welding provides direct and alternating current to 200 amps wide range of materials: aluminum, aluminum alloys (TIG AC mode), the details and materials of steel, nonferrous metals and copper alloys (TIG DC mode). The inverter provides excellent ignition and sustained a stable arc, and as a result - a quality weld, and ease of set up and ease of operation.
Complete set
  • The welding unit
  • The shoulder-carry belt
  • PATON™ branded corrugated box
  • The ABITIG 26 argon-arc torch with a cable 4 m in length
  • The welding cable 3 m in length with a Abicor Binzel МК300 grounding clamp
  • The quick-release nipple for a gas hose
  • The operation manual
