PATON™ ProTIG-315-400V AC/DC WA (without accessories)

Code: 1034031511
-5%
PATON™ ProTIG-315-400V AC/DC WA (without accessories)
PATON™ ProTIG-315-400V AC/DC WA (without accessories)
PATON™ ProTIG-315-400V AC/DC WA (without accessories)
PATON™ ProTIG-315-400V AC/DC WA (without accessories)
PATON™ ProTIG-315-400V AC/DC WA (without accessories)
PATON™ ProTIG-315-400V AC/DC WA (without accessories)
PATON™ ProTIG-315-400V AC/DC WA (without accessories)
PATON™ ProTIG-315-400V AC/DC WA (without accessories)
Code: 1034031511
In Stock
  • 54999 грн
  • 52249 грн
Quick Checkout
Pay in installments
9167 hrn
x 6 month
6
6
6
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Free
Specification
Rated power supply voltage, V 380/400
Rated welding current (A) 315
Operating load factor 50% (АС)
Power supply voltage range (V) ±10%
Welding current control range (A) 10 - 315
Diameter of a stick electrode, mm 1,6-6
Contactless arc ignition +
Warranty period, month 12
Welding current indication +
Memorizing modes +
Starting current regulation, A 25-300
Regulation of current rise time, sec 0-15
Idling voltage, V 80
Regulation of the downslope time, sec 0-25
Frequency of alternating welding current, Hz 15-70
Polarity balance when welding on alternating current,% 15-90
Rated power consumption, kVA 13,5
Torch trigger mode 2Т, 4Т
Overall dimensions, WxLxH, mm 585х282х387
Weight, kg 23
Protection rate IP23
Show all specifications
1-year warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network ±10% V
Unique ratio of mass and size characteristics with high power
Description

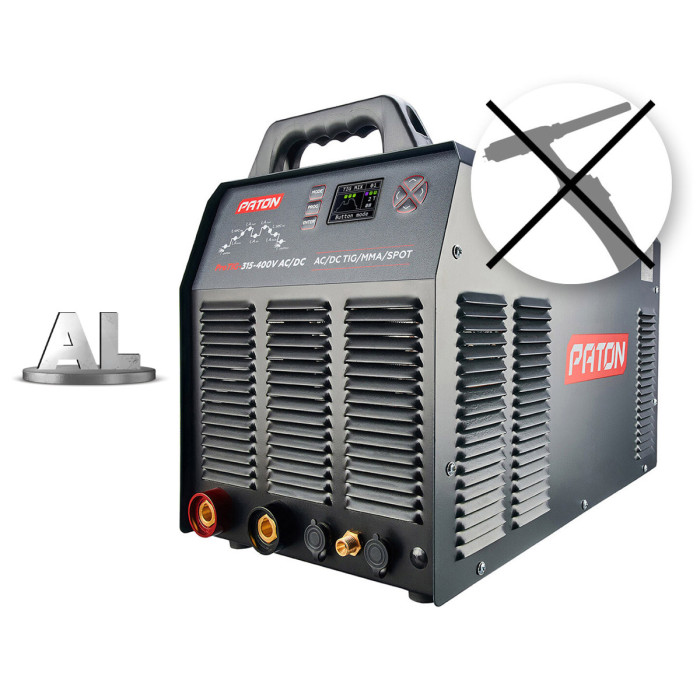

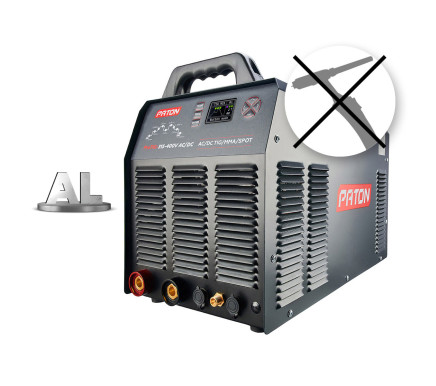

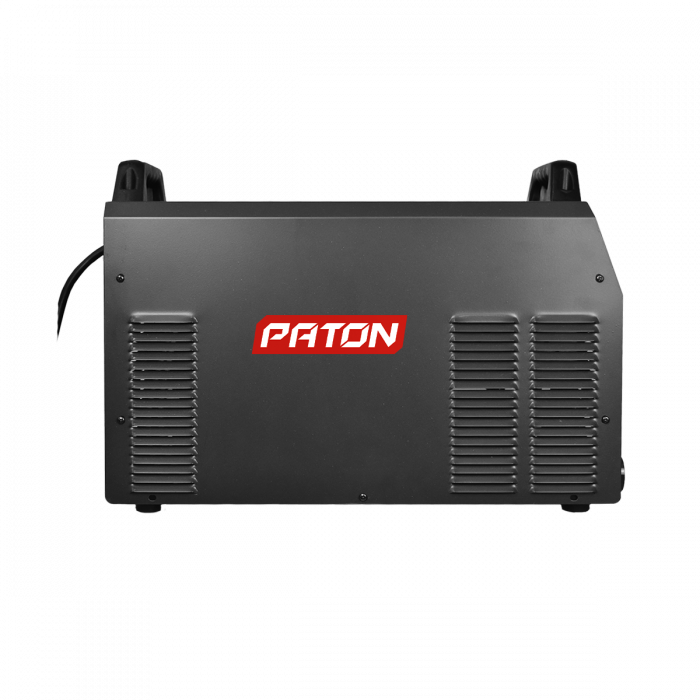

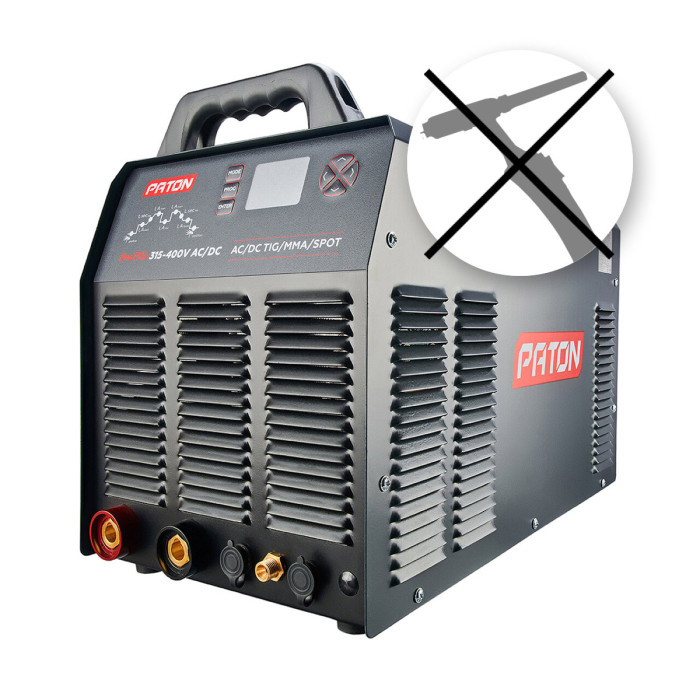

Argon inverter PATON PROTIG-315-400V AC/DC - enough multifunctional apparatus designed for TIG AC/DC welding, MMA manual arc welding, and availability of spot (cold) welding mode – SPOT. Model PROTIG-315-400V AC/DC welding provides direct and alternating current to 315 amps wide range of materials: aluminum, aluminum alloys (TIG AC mode), the details and materials of steel, nonferrous metals and copper alloys (TIG DC mode). The inverter provides excellent ignition and sustained a stable arc, and as a result - a quality weld, and ease of set up and ease of operation.
Complete set
  • The welding unit
  • The quick-release nipple for a gas hose
  • PATON™ branded corrugated box
  • The operation manual
Additional materials
Testimonials
Leave a review
Specification
Rated power supply voltage, V 380/400
Rated welding current (A) 315
Operating load factor 50% (АС)
Power supply voltage range (V) ±10%
Welding current control range (A) 10 - 315
Diameter of a stick electrode, mm 1,6-6
Contactless arc ignition +
Warranty period, month 12
Welding current indication +
Memorizing modes +
Starting current regulation, A 25-300
Regulation of current rise time, sec 0-15
Idling voltage, V 80
Regulation of the downslope time, sec 0-25
Frequency of alternating welding current, Hz 15-70
Polarity balance when welding on alternating current,% 15-90
Rated power consumption, kVA 13,5
Torch trigger mode 2Т, 4Т
Overall dimensions, WxLxH, mm 585х282х387
Weight, kg 23
Protection rate IP23
