Specification
| Rated power supply voltage, V | 220/230 |
| Rated welding current (A) | 200 |
| Operating load factor | 50% (АС) |
| Power supply voltage range (V) | 190-260 |
| Welding current control range (A) | 5 - 200 |
| Diameter of a stick electrode, mm | 1,6-5 |
| Contactless arc ignition | + |
| Warranty period, month | 24 |
| Welding current indication | + |
| Memorizing modes | + |
| Starting current regulation, A | 5-185 |
| Regulation of current rise time, sec | 0-15 |
| Idling voltage, V | to 80 |
| Regulation of the downslope time, sec | 0-25 |
| Frequency of alternating welding current, Hz | 15-200 |
| Polarity balance when welding on alternating current,% | 15-90 |
| Rated power consumption, kVA | 6,3 |
| Torch trigger mode | 2Т, 4Т |
| Overall dimensions, WxLxH, mm | 150х350х465 |
| Weight, kg | 12,5 |
| Protection rate | IP23 |
Show all specifications
2-year warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

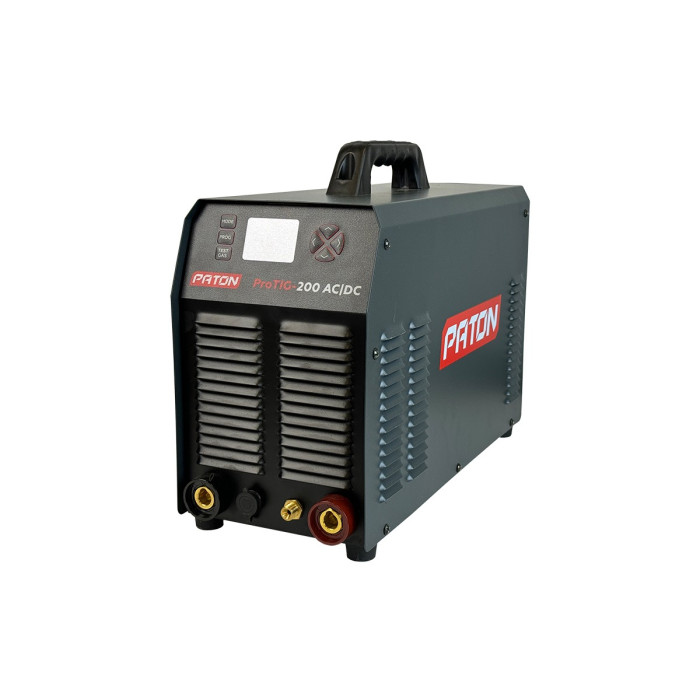

Argon inverter PATON PROTIG-200 AC/DC - enough multifunctional apparatus designed for TIG AC/DC welding, MMA manual arc welding , and availability of cold welding mode – SPOT. PROTIG-200 AC/DC Model - welding provides direct and alternating current to 200 amps wide range of materials: aluminum, aluminum alloys (TIG AC mode), the details and materials of steel, nonferrous metals and copper alloys (TIG DC mode). The inverter provides excellent ignition and sustained a stable arc, and as a result - a quality weld, and ease of set up and ease of operation.
This device is not supplied with:
- Argon arc torch
- Copper cable
- Quick-disconnect fitting

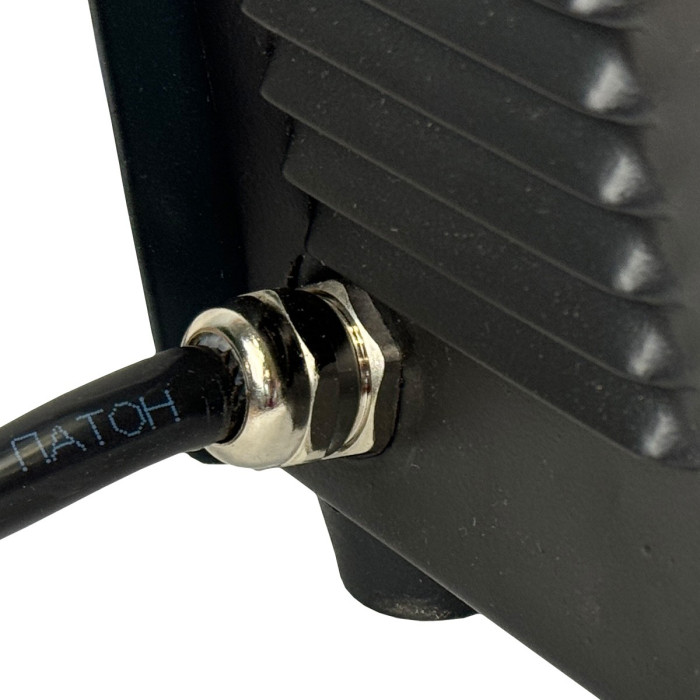

The welding machine has a minor defect in the casing at the exit of the hemline cable. It does not affect the operation of the device.
Additional materials
Testimonials
Specification
| Rated power supply voltage, V | 220/230 |
| Rated welding current (A) | 200 |
| Operating load factor | 50% (АС) |
| Power supply voltage range (V) | 190-260 |
| Welding current control range (A) | 5 - 200 |
| Diameter of a stick electrode, mm | 1,6-5 |
| Contactless arc ignition | + |
| Warranty period, month | 24 |
| Welding current indication | + |
| Memorizing modes | + |
| Starting current regulation, A | 5-185 |
| Regulation of current rise time, sec | 0-15 |
| Idling voltage, V | to 80 |
| Regulation of the downslope time, sec | 0-25 |
| Frequency of alternating welding current, Hz | 15-200 |
| Polarity balance when welding on alternating current,% | 15-90 |
| Rated power consumption, kVA | 6,3 |
| Torch trigger mode | 2Т, 4Т |
| Overall dimensions, WxLxH, mm | 150х350х465 |
| Weight, kg | 12,5 |
| Protection rate | IP23 |

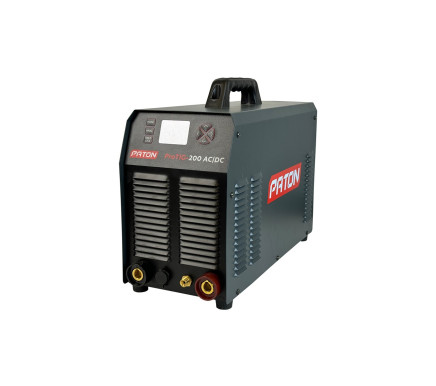

Welding machine PATON™ ProTIG-200 2000831
Code: 20324411
In Stock
- 38999 грн
- 31199 грн
