| Cooling | Forced |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 18 … 21 |
| Rated welding current (A) | 160 |
| Maximum operating current, A | 215 |
| Operating load factor | 45% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 8 - 160 |
| Limits of regulation of speed of giving of a wire, m / min. | 2,0 … 16 |
| Diameter of a stick electrode, mm | 1,6-4 |
| Diameter of solid welding wire, mm | 0,6 - 1 |
| PULSE function | MMA/TIG |
| Weight of the coil no more, kg | 5 |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 4,1-4,7 |
| Maximum consumption,power kVA | 5,9 |
| Overall dimensions, WxLxH, mm | 245х420х300 |
| Gross weight, kg | 16 |
| Weight, kg | 11 |
| Protection rate | IP33 |
Digital semiautomatic inverter PATON StandardMIG-160 - is intended for semi-automatic welding (MIG/MAG), manual arc welding (MMA), TIG on a direct current in a medium, and shielding gas mixtures. The device StandardMIG-160 is implemented fully digital way to manage, thereby ensuring its versatility and ample opportunity to fine-tune the welding conditions. Issue unit 160A to the rated current enables any working electrodes with diameters from 1.6 mm to 4 mm and a solid welding wire with diameters from 0.6 mm to 1.0 mm. A separate closed compartment for welding wire improves its protection against dust and other contaminants.
PATON StandardMIG-160 is equipped with a high-quality metal wire feeder with a strong hermetic motor, a universal connector KZ-2 type "EURO" allows connecting welding torch from a wide range of manufacturers. StandardMIG-160, in conjunction with high power and capacity, has a low weight and dimensions. Thanks to the LCD screen machine is easy and convenient to set up a solution to any problem. The device comes with high-quality accessories from the company ABICOR BINZEL, which allow you to immediately start work in MIG/MAG and MMA modes.
A 4th generation machine with no defects.

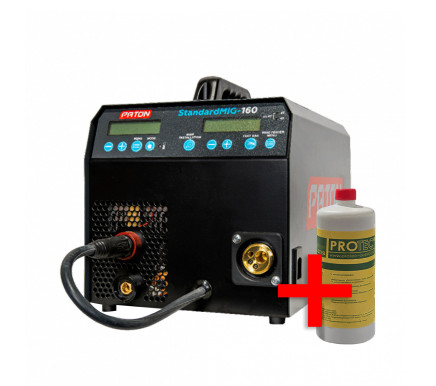

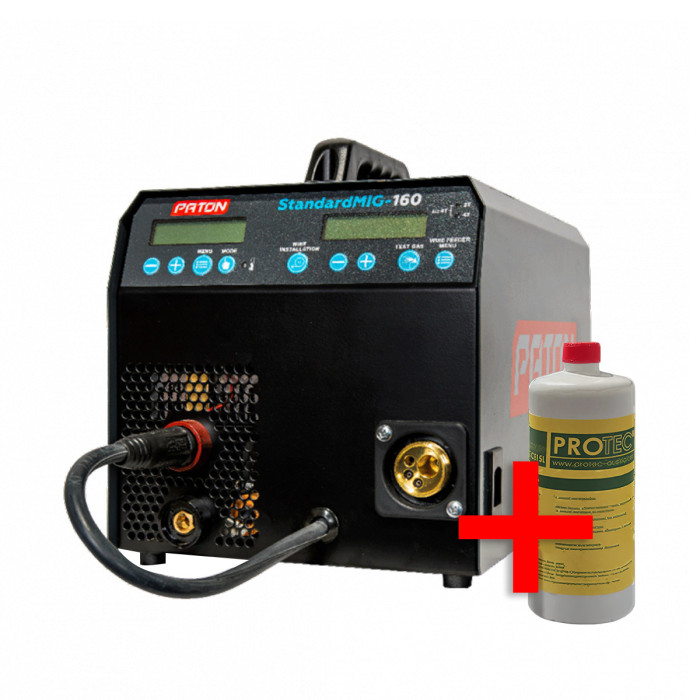

FREE GIFT: Protec CE1 5L anti-stick agent, 1L
- Welding machine
- Branded corrugated box PATON™
- Welding torch Abicor Binzel ABIMIG 155
- Electrode holder Abicor Binzel DE2200
- Earth terminal Abicor Binzel MK300
- Roll kits for 4 wire diameters
- Gas hose quick coupling
- User's manual
- Protec CE1 5L anti-stick agent, 1L - FREE GIFT
| Cooling | Forced |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 18 … 21 |
| Rated welding current (A) | 160 |
| Maximum operating current, A | 215 |
| Operating load factor | 45% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 8 - 160 |
| Limits of regulation of speed of giving of a wire, m / min. | 2,0 … 16 |
| Diameter of a stick electrode, mm | 1,6-4 |
| Diameter of solid welding wire, mm | 0,6 - 1 |
| PULSE function | MMA/TIG |
| Weight of the coil no more, kg | 5 |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 4,1-4,7 |
| Maximum consumption,power kVA | 5,9 |
| Overall dimensions, WxLxH, mm | 245х420х300 |
| Gross weight, kg | 16 |
| Weight, kg | 11 |
| Protection rate | IP33 |
