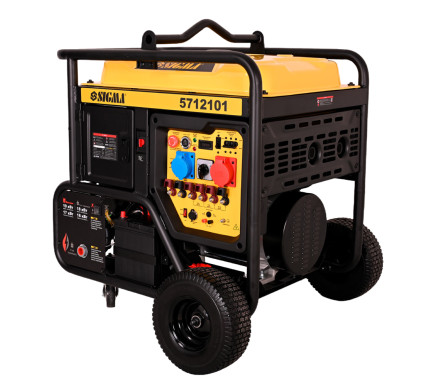

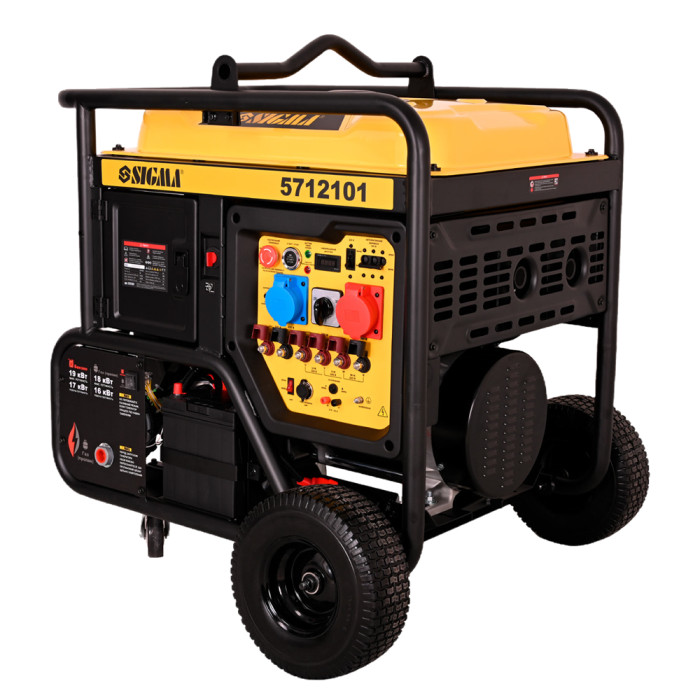

Generator gas/petrol 220-380V 17/19kW two-cylinder 4-stroke SIGMA

Generator gas/gasoline 220-380V 17/19kW two-cylinder 4-stroke with output for ATS SIGMA (5712101) The generator is a modern mini-power station capable of fully providing power to a small house or office. The generator can be effectively used as a backup or constant power source. With its help, you can power various power tools, household appliances or equipment.

Advantages:

• Copper alternator winding

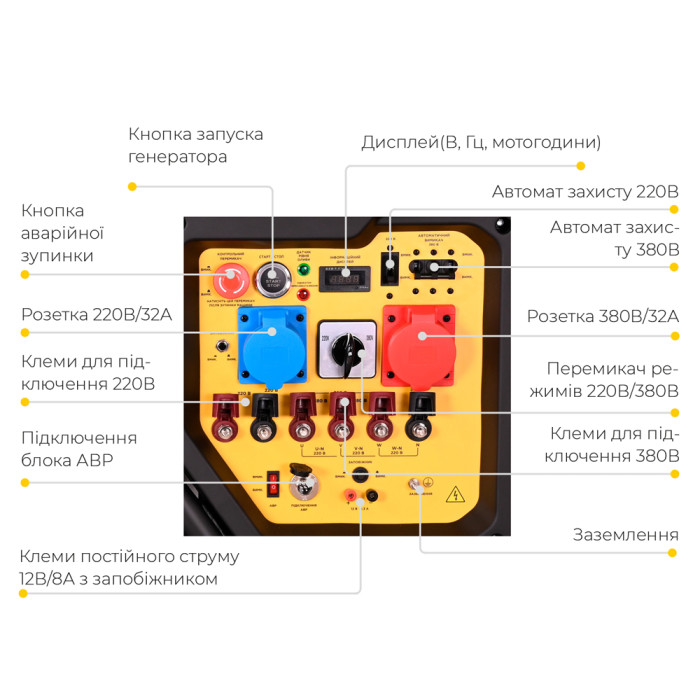

• The ability to connect automatic backup input (ATS)
• Built-in output voltage regulator (AVR)
• Equipped with an "OIL ALERT" low oil level protection system
• Overhead valves (OHV)
• Anti-vibration system
• Capacious tank
• Additional DC output (12V-8.3A)

Characteristics:

• Voltage U 1 ~ 230 ± 10% V
• Voltage U 3 ~ 400 ± 10% V
• Frequency, Hz: 50
• Nominal power (petrol/gas), kW: 17/16
• Maximum power (petrol/gas), kW: 19/18
• Power factor, Cos φ: 0.8
• Fuel tank capacity, l: 50
• Engine displacement, cm³: 999
• Fuel consumption, g/kWh: 372
• Oil sump capacity, l: 2.4
• Noise level, dB: 86
• Volume, m³: 0.76704955
