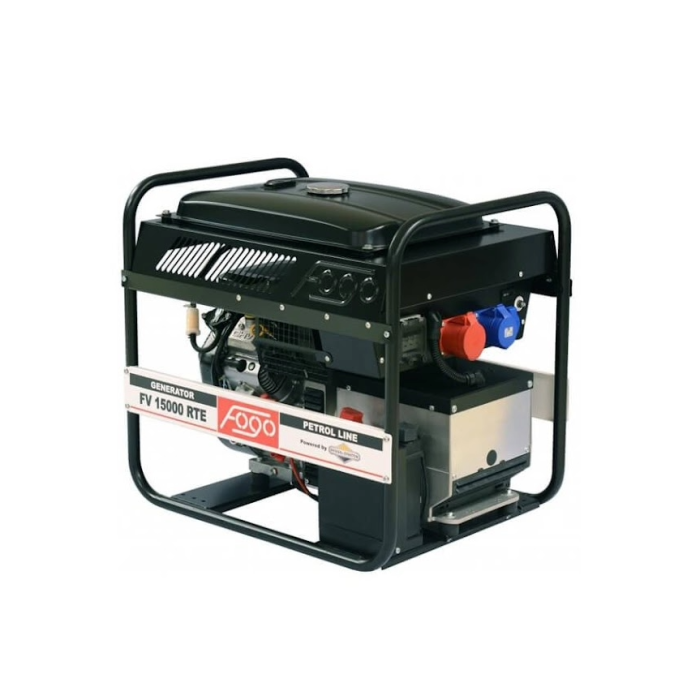

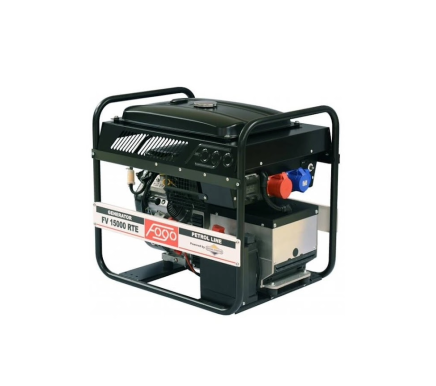

Gasoline generator 10 kW FOGO FV 15000 TRE

FOGO FV 15000 TRE - three-phase gasoline generator with Briggs+Stratton Vanguard 3854 engine. Starting is done with an electric starter or manually. Rated generator power: 10 kW (3 phases) and 6.5 kW (1 phase). Rated current 18.1 A (3 phases) and 28.3 A (1 phase). The generator has a built-in voltage stabilization system (AVR) and a thermal relay that turns off the engine when the critical operating temperature is reached. Additionally, the engine protection technology from operating without oil with its emergency shutdown has been implemented.

The generator is highly economical and has increased efficiency. Fuel consumption at 75% load is 4.9 l/h. Equipped with a high-quality alternator from the manufacturer Sincro (Italy) with protection class IP 23.

Designed to restore electricity supply in case of power grid failures or lack of other power sources, when the fixed network is unavailable or damaged.

Features:

• automatic engine stop at low oil level
• digital voltage regulation AVR +/- 1.5% per phase
• digital AVR system, which guarantees operation without overloads and does not allow voltage surges THD ≤ 5%
• load protection
• thermal relay
• oil pressure sensor
• two protected sockets: 1f ~ 16A 230V Schuko and 3f ~ 32A 400V IP44
• generator protection class IP 23
• generator insulation class H
• generator starting current 300%
• reinforced frame profile 38 mm
• silencer with exhaust hose connection
• battery
• hour meter
