| Equipment | Automation unit, Connection cable – 5 meters |
| Power | 20 kW |
| Supply voltage | U 1 ~ 230 ± 10% V |
| Frequency | 50 Hz |
| Overall dimensions | 0.370×0.3×0.140 м |
| Weight | 5,8 kg |

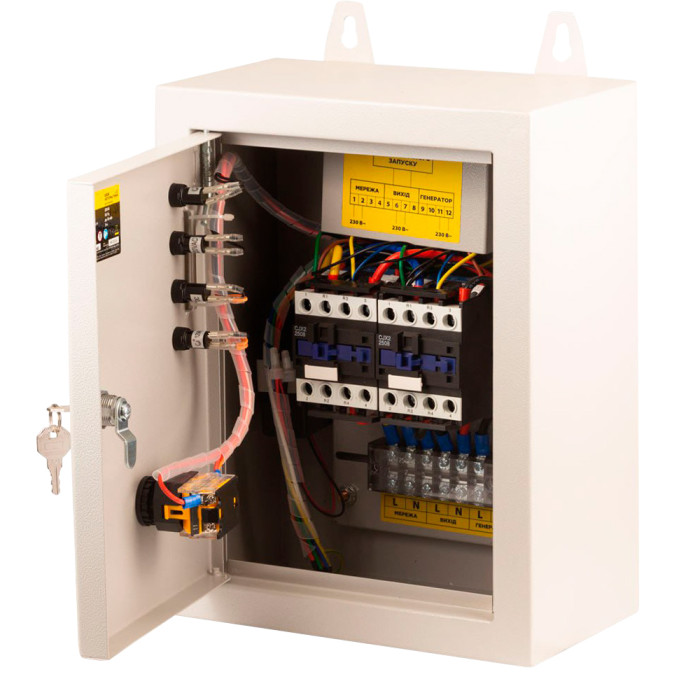

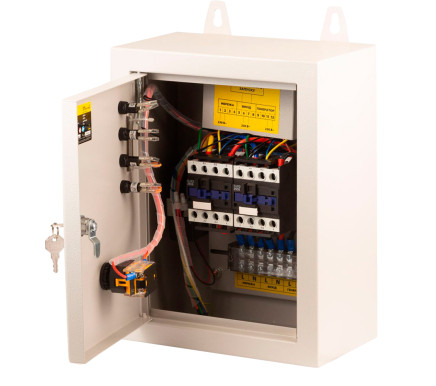

The automation unit is used to work together with generators that have the automatic operation option and a connector for connecting the automation unit, located on the front panel of the generator.
The unit provides: automatic start of the generator in case of failure or interruption of electricity supply in the common network, switching the load to power from the generator, as well as reverse switching of the load to the common network when the electricity supply is restored and the generator stops
The automation unit is assembled in a metal case. Has a wall mount
Connection to the generator is carried out using a special control cable (included in the kit) and a power wire (purchased separately)
The automation unit must be installed in a dry room protected from weather conditions
Characteristics:
- Network, V/Hz: 380/50
- Power, kW: 20
- Overall dimensions, m: 0.370×0.3×0.140
- Net weight, kg: 5.8
- Gross weight, kg: 6.1
- Automatic unit
- Connection cable – 5 meters
| Equipment | Automation unit, Connection cable – 5 meters |
| Power | 20 kW |
| Supply voltage | U 1 ~ 230 ± 10% V |
| Frequency | 50 Hz |
| Overall dimensions | 0.370×0.3×0.140 м |
| Weight | 5,8 kg |
- 11479 грн
