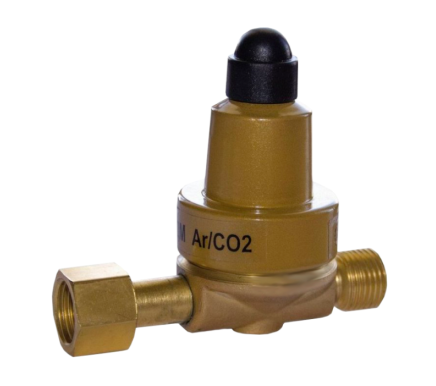

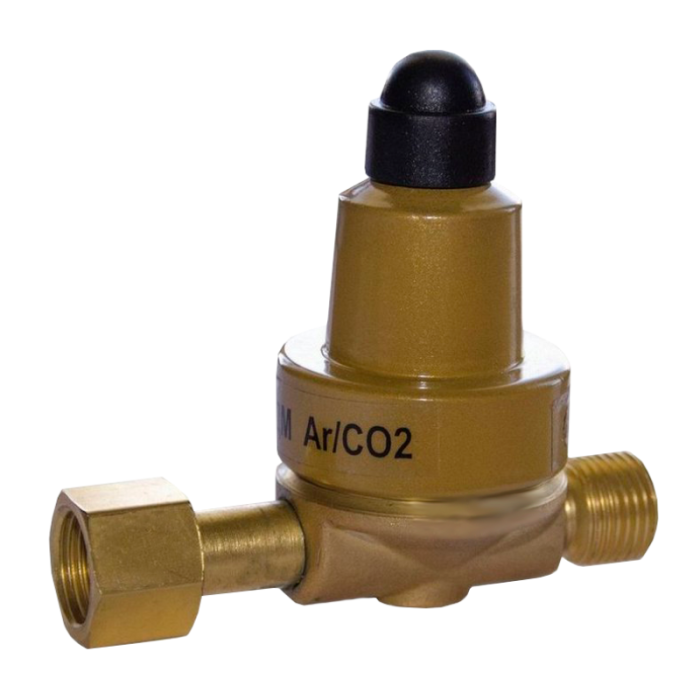

DM Optimizer Lite

DEVICE FOR SAVINGS AND OPTIMAL FLOW OF CARBON DIOXIDE / ARGON

Optimizer of lightweight design. The lightweight version is devoid of additional adapters for connection to the sleeve gap and holes in the housing for screwing to the welding machine.

For arc welding in protective gases, reducers with a working pressure of up to 10 bar are used.

When welding is stopped, excess gas pressure is formed in the sleeve between the reducer and the welding machine (usually 3.5-6 bar).

After welding is continued, this excess gas volume is instantly discharged into the atmosphere. In this case, the amount of excess gas can be 6 times higher than at the time of welding. However, for optimal protection of the weld pool, a maximum pressure of 1.0 bar with a flow rate of 25 l/min is required.

These costs can be prevented by the “DM Optimizer” reducer attachment

• Installed on the reducer outlet;
• Saves up to 50% of shielding gas;
• Reduces the frequency of cylinder changes;
• Reduces the cost of transporting cylinders to the filling station;
• Saves the cost of purchasing gases.

Provides:

• optimal flow of shielding gas from the first seconds;
• No turbulent surge at the beginning of welding;
• Twice as many seams with the same amount of gas
